Watts 0066123
¾ 100XL8-100210
Documents
- Watts 0002140, 0002210, 0002220, 0002268, 0004431, 0004434, 0004494, 0004495, 0004497, 0063069, 0063072, 0063093, 0063098, 0064014, 0066079 Data Sheet
- Watts 0002140, 0002210, 0002220, 0002268, 0004431, 0004434, 0004494, 0004497, 0063069, 0063072, 0063093, 0063098, 0064014, 0064016, 0066079 Installation Instructions
Product Details

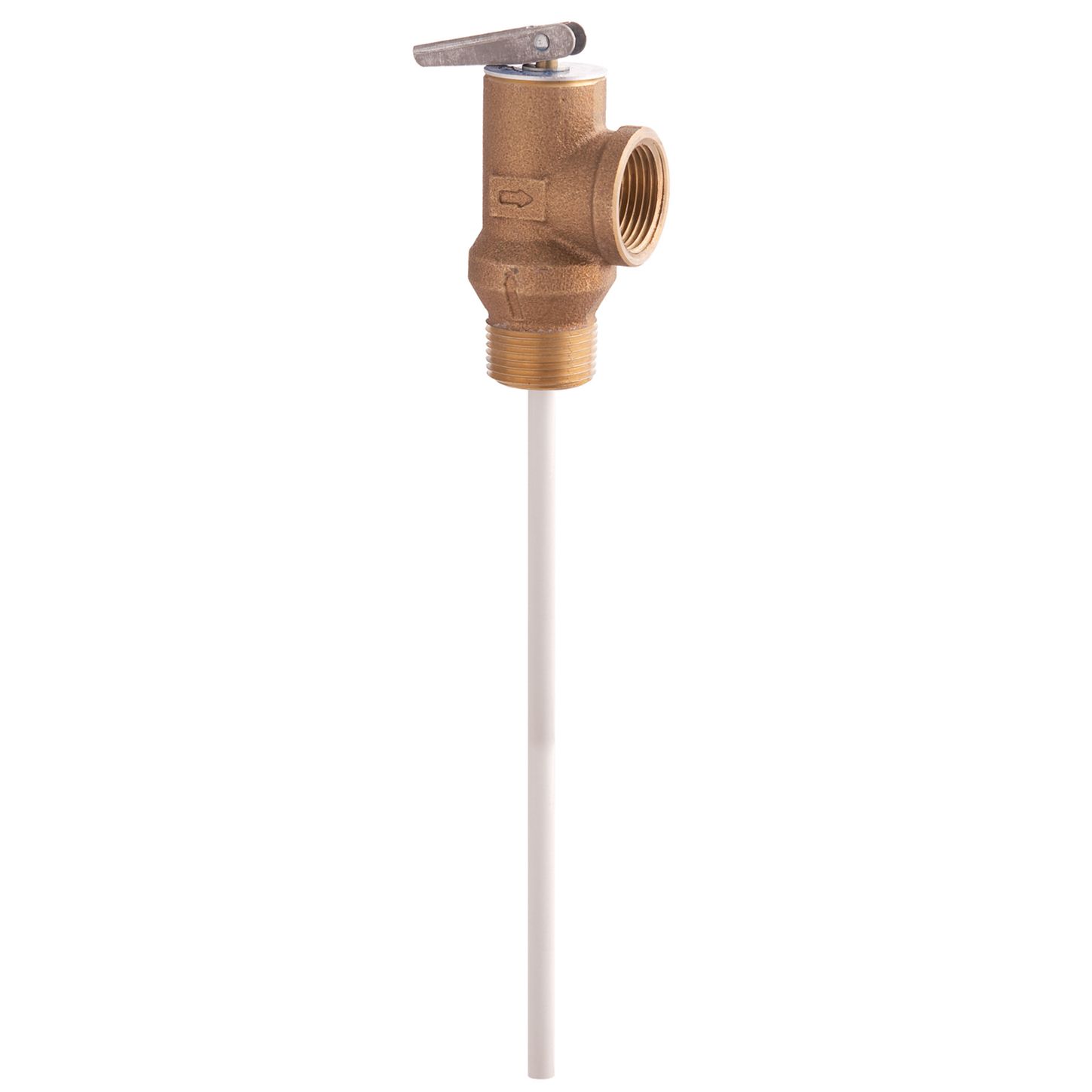

The combined 2 in 1 T\&P relief valve provides the least expensive and proven means for protection against both excessive temperature and pressure emergency conditions.
Provides fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105,000 BTU/HR. Series 10L furnished with test lever and short thermostat for installation directly in tank tapping. Series 100XL furnished with test lever and extension thermostat for installation in the hot water outlet line or directly in the tank tapping. Temperature sensing element must be immersed in the water within the top 6” (152mm) of the tank. Male inlet and female outlet. Temperature relief 210°F (99°C). Standard settings 75, 100, 125, 150psi (5.3, 7.0, 8.8, 10.6 bar).
Specifications
| SKU | CS5351401 |
|---|---|
| MPN | 0066123 |
| UPC/EAN | 098268007305 |
