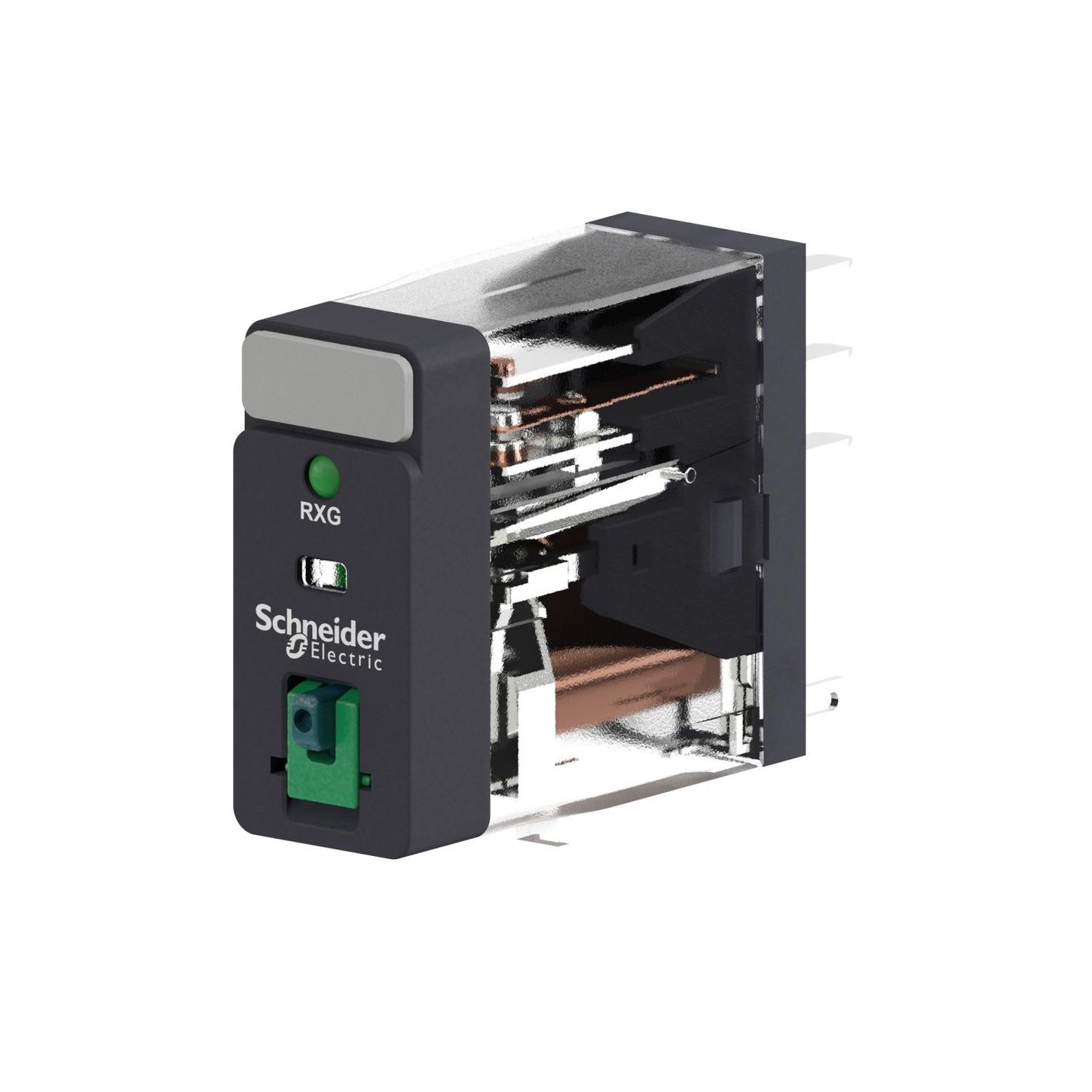

Schneider Electric RXG22JD

Name: Schneider Electric RXG22JD
Brand: Schneider Electric
SKU: CS5343567
Availability: OutOfStock

SKU: CS5343567MPN: RXG22JD

interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 12V DC

Product Details

“This Harmony RXG plug-in relay socket has a coil control voltage of 12V DC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A.” “It has large choice of number of contacts for high rated current use with space-saving design.” “It also offers a lockable test button and LED indicator.” “The faston pin terminal mounts quickly and securely.” “It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere.” “Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs).” “Status display with LED, clearly signal both in the day and night.”

Attributes

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Colour Of Cover	standard
Contact Resistance	100 mOhm
Contacts Material	silver alloy (AgSnO2In2O3)
Contacts Type And Composition	2 C/O
Control Type	lockable test button
Device Presentation	complete product
Device Short Name	RXG
Electrical Insulation Class	class F
Ip Degree Of Protection	IP40
Local Signalling	flag
Mechanical Durability	10000000 cycles
Mounting Position	any position
Operating Time	20 ms
Overvoltage Category	III
Pollution Degree	2
Product Certifications	EAC# #CSA# #UL# #CE
Product Or Component Type	plug-in relay
Protection Category	RT I
Range Of Product	Harmony Electromechanical Relays
Relative Humidity	10-85 %
Reset Time	20 ms
Safety Reliability Data	B10d = 100000
Series Name	interface relay
Standards	UL 508# #IEC 61810-1# #CSA C22.2 No 14
Status Led	with
Torque Value	0.8 N.m
Utilisation Coefficient	0.20000000298023
