Schneider Electric M9F42301

Name: Schneider Electric M9F42301
Brand: Schneider Electric
SKU: CS5343524
Availability: OutOfStock

SKU: CS5343524MPN: M9F42301

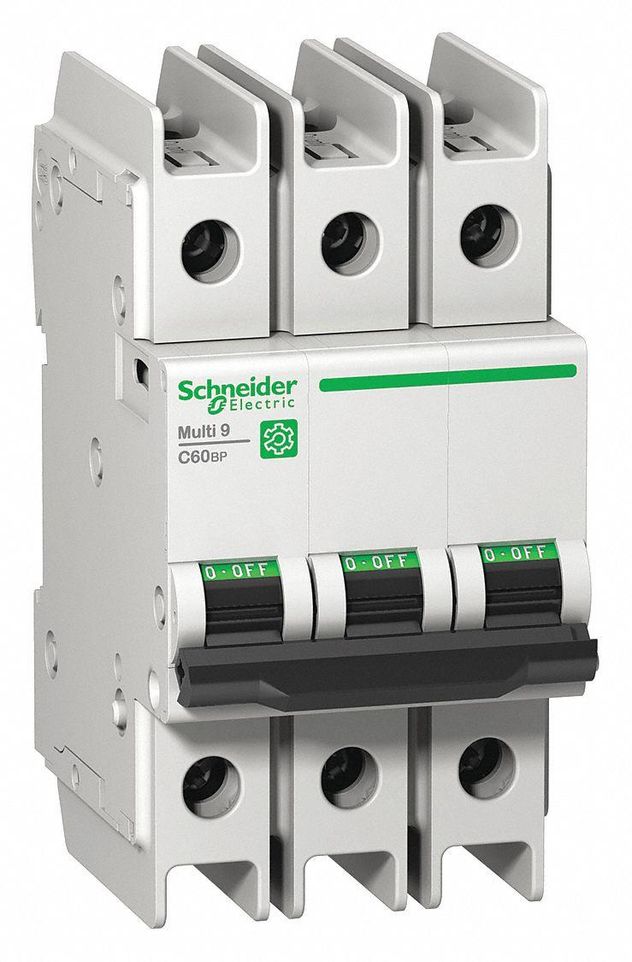

Miniature circuit breaker (MCB), Multi9 C60BP, 3P, 1A, C curve, 10kA (UL489), 10kA (IEC/EN 60947-2)

Schneider Electric, Square D M9F42301, M9F42303, M9F42308, M9F42320, M9F42345, M9F42350, M9F43302, M9F43305, M9F43306, M9F43315, M9F43330

Product Details

IEC Miniature Circuit Breaker Amps 1 A Number of Poles 3 Curve Type C AC Voltage Rating 240/277/480V AC DC Voltage Rating Not Rated Max AIR Rating 14kA at 120/240V AC Phase 3 Meets UL Type UL 489 Terminal Connection Screw Clamp Series C60BP Trip Type Thermal Magnetic Circuit Breaker Mounting Style DIN Rail Application Branch Circuit Protection Min Wire Size 18 AWG Max Wire Size 8 AWG Length 4.06 in Width 2.13 in Depth 2.83 in Frame Size 63A/C60BP

Attributes

9 Mm Pitches	6.0000
Ambient Air Temperature For Storage	-40-80 °C
Contact Position Indicator	yes
Control Type	toggle
Curve Code	C
Device Application	distribution
Device Short Name	C60BP
Earth Leakage Protection	without
Local Signalling	ON/OFF indication
Mechanical Durability	20000 cycles
Mounting Mode	clip-on
Mounting Support	DIN rail
Network Type	AC
Number Of Protected Poles	3.0000
Operating Altitude	0…2000 m
Poles Description	3P
Product Name	Multi 9 C60
Product Or Component Type	miniature circuit-breaker
Provision For Padlocking	padlockable
Range	Multi 9
Trip Unit Technology	thermal-magnetic
