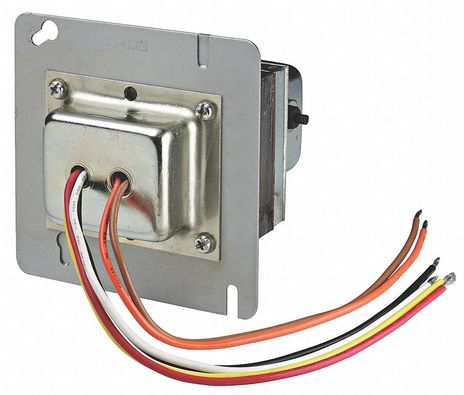

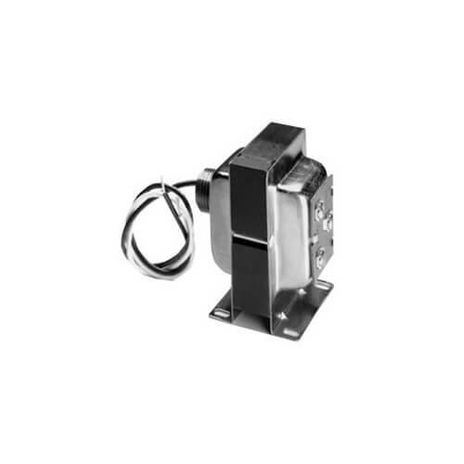

Johnson Controls Y64T22-0

TRANSFORMER UR CLASS 2; 120/208/240VAC PRIMARY 24VAC SECONDARY 92VA UR CUR RECOGNIZED

120/208/240V Primary, 24V Secondary Class 2 Transformer

Application:

These transformers are designed for use on digital controllers, gas controls, ignition systems, motor actuators, staging controls, and other 24 VAC control systems. The entire line meets all the requirements of UL 1585, UL 506, and C22.2 No. 66. This assures acceptance in both the United States and Canada. Provides best primary/secondary isolation and reduces stocking requirements and offers application flexibility. The Y64T22-0 is a 92 VA capacity transformer with circuit breakers..

Technical Data:

• Series: Y64
• Phase: 1
• VA Rating: 92 Volts-Amps
• Primary Voltage: 120/208/240
• Secondary Voltage: 24
• Mounting: Foot/Hub Mount
• Termination: Wire Leads
• Temperature Range: -40 to 104 Deg. F
• Approvals: UL/CSA
