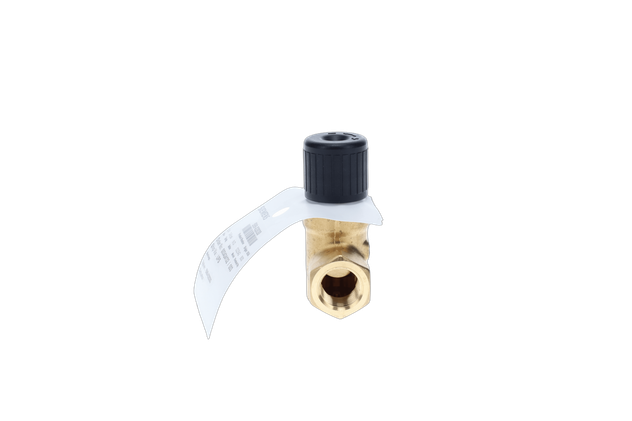

Siemens 599-02062A

Name: Siemens 599-02062A
Brand: Siemens Building Technologies
SKU: CS5317879
Availability: OutOfStock

SKU: CS5317879MPN: 599-02062AUPC/EAN: 4034106334277

MT Series 2W Valve ¾”, NO, 6.3Cv, Mod Eq Pct, SS Trim, F×UM, ANSI 250

Siemens Building Technologies 599-02001, 599-02001B, 599-02001C, 599-02003, 599-02003B, 599-02003C, 599-02005B, 599-02005C, 599-02007B, 599-02007C, 599-02009C, 599-02011B, 599-02011C, 599-02013C, 599-02016

Discontinued - Contact Us For Pricing & Availability

Product Details

This Valve is a Powermite 599 MT Series, ANSI Class 250, 2-W, NO, Modified Eq Pct, 6.3 Cv, F×UM, ¾”, Brass Body, SS Trim, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet. No tools required for installation

Attributes

End Connection	FxUM
Flow Characteristic	Modified Equal-percentage
Flow Coefficient Cv	6.3000001907349
Medium	Steam;Water;Water with anti-freeze
Medium Temperature	35…250 ºF
Medium Temperature F Max	250 ºF
Medium Temperature F Min	35 ºF
Mounting Position	any
Normally Open Normally Closed	Normally Open
Permissible Operating Pressure	2758 kPa; 400 psi
Port Configuration	2-Way Normally open
Trim Material	Stainless Steel
Valve Body Style	Stroke-Globe
Valve Size	0.75 in
Valve Type	Two-way
