Siemens 285-06176
SKU: CS5317267MPN: 285-06176

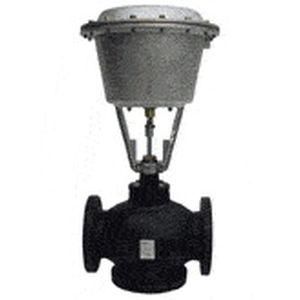

Valve assy 3W Mix 3” 100Cv Eq Pct/Lin SS Trim Flanged 12” Pneu Act w/ pos
$3,789.70
UnitAvailable on backorder
Product Details
Flowrite 599 Series Valve Assembly features a 12-inch pneumatic actuator with factory-mounted positioner, ¾-inch stroke, and 5 psi span. The 3-way, mixing, 3-inch, 100 Cv valve assembly with ¾-inch stroke is ANSI Class 250 and has an equal percentage/linear characteristic, stainless steel trim, and flanged end connections.
Attributes
| Actuator Type | Pneumatic |
| Close Off Pressure | 74 psi |
| Connecting Thread | Direct-coupled universal bonnet |
| End Connection | Flanged |
| Fail Safe | Yes |
| Flow Characteristic | Linear |
| Flow Coefficient Cv | 100.0000 |
| High Temperature | NO |
| Leakage Rate | Class IV (0.01% of Cv) |
| Material Inside Set | Body Trim: Stainless Steel; Stem: Stainless Steel ASTM A582 Type 303; Packing: EPDM O-ring |
| Material Valve Body | Cast iron ASTM A126 Class B |
| Max Differential Pressure Liquid | 50 psi |
| Max Inlet Pressure Absolute Liquid | 400 psi |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 20…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 20 ºF |
| Operating Voltage | Pneumatic |
| Permissible Operating Pressure | Max. recommended differential pressure for modulating service: 50 psi, 345 kPa |
| Port Configuration | 3-Way Mixing |
| Rangeability | |
| Spring Range | 3-8 psi |
| Spring Return Function | Spring return to fail-safe position |
| Stroke | ¾ in., 20 mm |
| Trim Material | Stainless Steel |
| Valve Body Style | Stroke-Globe |
| Valve Size | 3 in |
| Valve Type | Three-way |
Specifications
| SKU | CS5317267 |
|---|---|
| MPN | 285-06176 |
