Siemens 283-06175

Name: Siemens 283-06175
Brand: Siemens Building Technologies
SKU: CS5317224
Price: 2270.56 USD
Availability: OutOfStock

SKU: CS5317224MPN: 283-06175

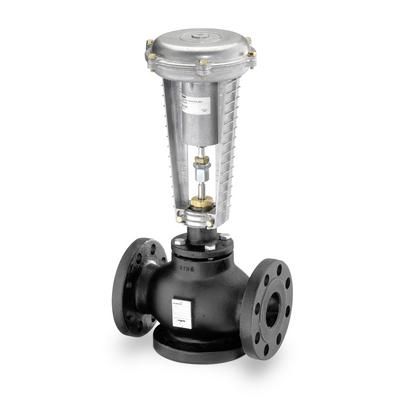

Valve assy 3W Mix 2-½” 63Cv Eq Pct/Lin SS Trim Flanged 8” Pneu Act w/ pos

Siemens Building Technologies 277-06165, 277-06166, 277-06171, 277-06175, 277-06176, 283-06165, 283-06166, 283-06170, 283-06171, 283-06175, 283-06176

$2,270.56

Unit

Available on backorder

Quantity

remove

add

Product Details

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with factory-mounted positioner and 5 psi span. The 3-way, mixing, 2-½-inch, 63 Cv valve assembly with ¾-inch stroke is ANSI Class 250 and has an equal percentage/linear characteristic, stainless steel trim, and flanged end connections.

Attributes

Actuator Type	Pneumatic
Close Off Pressure	36 psi
Connecting Thread	Direct-coupled universal bonnet
End Connection	Flanged
Fail Safe	Yes
Flow Characteristic	Linear
Flow Coefficient Cv	63.0000
High Temperature	NO
Leakage Rate	Class IV (0.01% of Cv)
Material Inside Set	Body Trim: Stainless Steel; Stem: Stainless Steel ASTM A582 Type 303; Packing: EPDM O-ring
Material Valve Body	Cast iron ASTM A126 Class B
Max Differential Pressure Liquid	50 psi
Max Inlet Pressure Absolute Liquid	400 psi
Medium	Water;Water with anti-freeze
Medium Temperature	20…250 ºF
Medium Temperature F Max	250 ºF
Medium Temperature F Min	20 ºF
Operating Voltage	Pneumatic
Permissible Operating Pressure	Max. recommended differential pressure for modulating service: 50 psi, 345 kPa
Port Configuration	3-Way Mixing
Rangeability	100:1
Spring Range	3-8 psi
Spring Return Function	Spring return to fail-safe position
Stroke	¾ in., 20 mm
Trim Material	Stainless Steel
Valve Body Style	Stroke-Globe
Valve Size	2.5 in
Valve Type	Three-way
