Siemens 276-06171

Name: Siemens 276-06171
Brand: Siemens Building Technologies
SKU: CS5316990
Price: 1943.76 USD
Availability: OutOfStock

SKU: CS5316990MPN: 276-06171

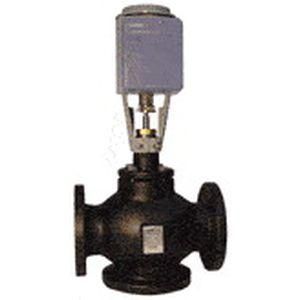

Valve assy 3W Mix 3” 100Cv Eq Pct/Lin Brass Trim Flanged float El-Hydrl Act SR

Siemens Building Technologies 267-05920, 267-05921, 267-05930, 267-05931, 267-05940, 267-05950, 267-05951, 267-05961, 267-05970, 267-05971, 267-05980, 267-05981, 267-05990, 267-05991, 267-06040

$1,943.76

Unit

Available on backorder

Quantity

remove

add

Product Details

Flowrite 599 Series Valve Assembly features a floating control, spring return, 24 Vac electro-mechanical actuator. The 3-way, mixing, 3-inch, 100 Cv valve assembly with ¾-inch stroke is ANSI Class 250 and has an equal percentage/linear characteristic, brass trim, and flanged end connections.

Attributes

Actuator Type	Electronic
Ambient Temperature Operation	5 to 130 °F, -15 to 55 °C
Close Off Pressure	22 psi
Connecting Thread	Direct-coupled universal bonnet
Control Signal	Floating control
End Connection	Flanged
Fail Safe	Yes
Flow Characteristic	Linear
Flow Coefficient Cv	100.0000
High Temperature	NO
Leakage Rate	Class IV (0.01% of Cv)
Material Inside Set	Body Trim: Bronze; Stem: Stainless Steel ASTM A582 Type 303; Packing: EPDM O-ring
Material Valve Body	Cast iron ASTM A126 Class B
Max Differential Pressure Liquid	25 psi
Max Inlet Pressure Absolute Liquid	400 psi
Medium	Water;Water with anti-freeze
Medium Temperature	20…250 ºF
Medium Temperature F Max	250 ºF
Medium Temperature F Min	20 ºF
Operating Voltage	24 VAC
Permissible Operating Pressure	Max. recommended differential pressure for modulating service: 50 psi, 345 kPa
Port Configuration	3-Way Mixing
Positioning Time	Power stroke 120 sec, Return stroke 120 sec, Spring return 8 sec
Power Consumption	18 VA
Rangeability	100:1
Spring Return Function	Spring return functionality
Stroke	¾ in., 20 mm
Supply Voltage	24 VAC
Trim Material	Brass
Valve Body Style	Stroke-Globe
Valve Size	3 in
Valve Type	Three-way
