Siemens 269-03146
SKU: CS5316669MPN: 269-03146
Valve assy 3W Mix ½” 2.5Cv Eq Pct/Lin SS Trim FxF, 4” Pneu Act 5-10psi
$484.14
Unit1 in stock
Product Details

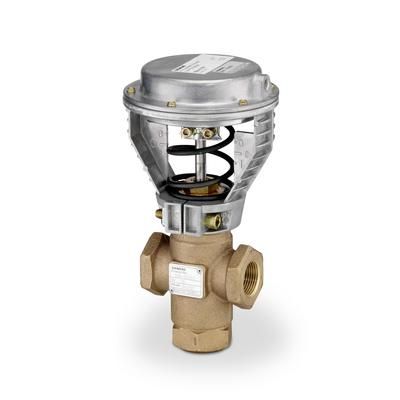

Flowrite 599 Series Valve Assembly features a 4-inch pneumatic actuator with 5-10 psi. The 3-way, mixing, ½-inch, 2.5 Cv valve assembly is ANSI Class 250 and has an equal percentage/linear characteristic, stainless steel trim, and female x female end connections.
Attributes
| Actuator Type | Pneumatic |
| Close Off Pressure | 236 psi |
| Connecting Thread | Direct-coupled universal bonnet |
| End Connection | FxF |
| Fail Safe | Yes |
| Flow Characteristic | Equal-percentage |
| Flow Coefficient Cv | 2.5000 |
| High Temperature | NO |
| Leakage Rate | Class IV (0.01% of Cv) |
| Material Inside Set | Body Trim: Stainless Steel; Stem: Stainless Steel ASTM A582 Type 303; Packing: EPDM O-ring;Seat: Single seat metal-to-metal |
| Material Valve Body | UNS CA 844 bronze |
| Max Differential Pressure Liquid | 50 psi |
| Max Inlet Pressure Absolute Liquid | 400 psi |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 20…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 20 ºF |
| Operating Voltage | Pneumatic |
| Permissible Operating Pressure | Max. recommended differential pressure for modulating service: 50 psi, 345 kPa kPa |
| Port Configuration | 3-Way Mixing |
| Rangeability | |
| Spring Range | 5-10 psi |
| Stroke | ¾ in., 20 mm |
| Trim Material | Stainless Steel |
| Valve Body Style | Stroke-Globe |
| Valve Size | 0.5 in |
| Valve Type | Three-way |
Specifications
| SKU | CS5316669 |
|---|---|
| MPN | 269-03146 |
