Siemens 259-02023
SKU: CS5316455MPN: 259-02023UPC/EAN: 1P259-02023

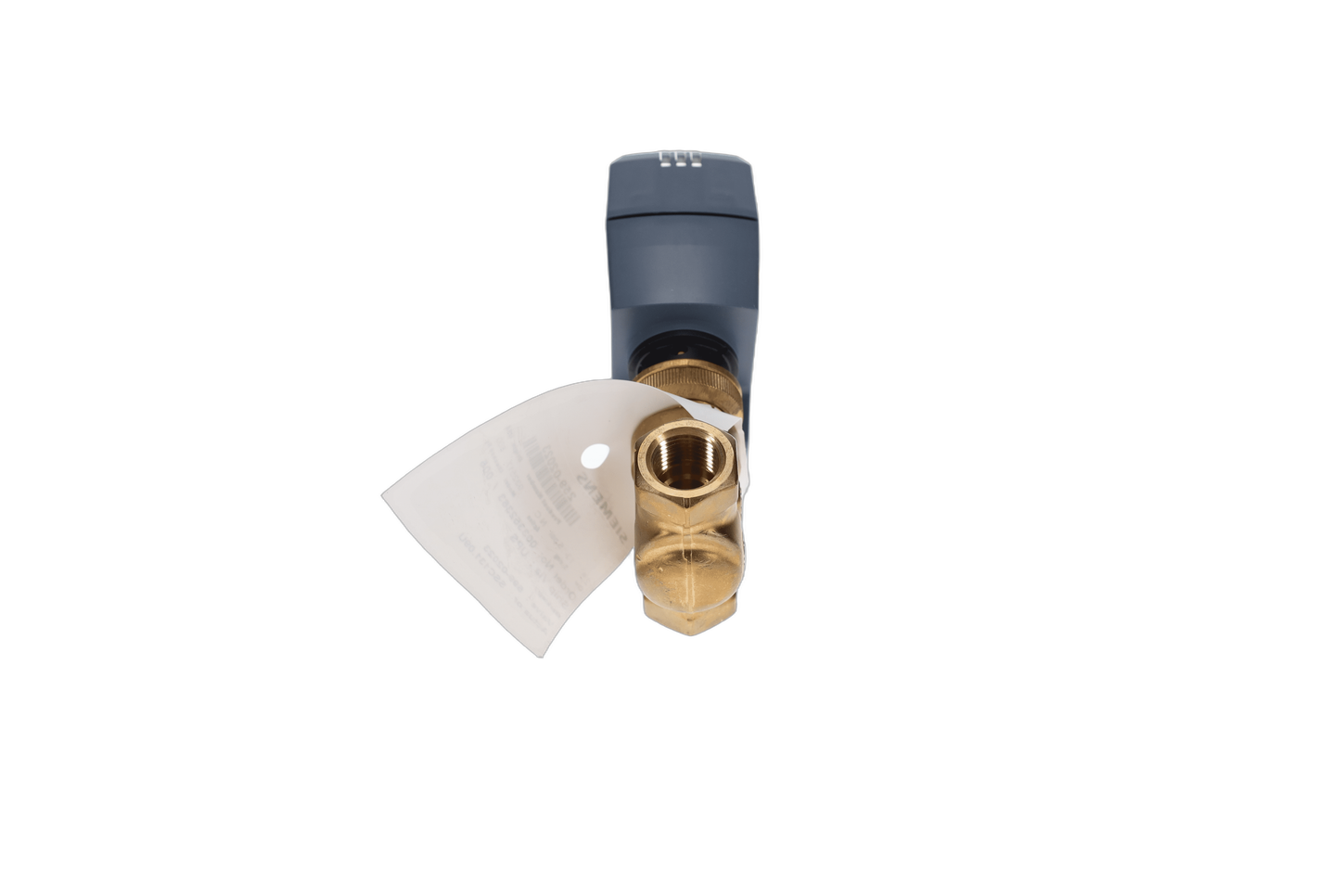

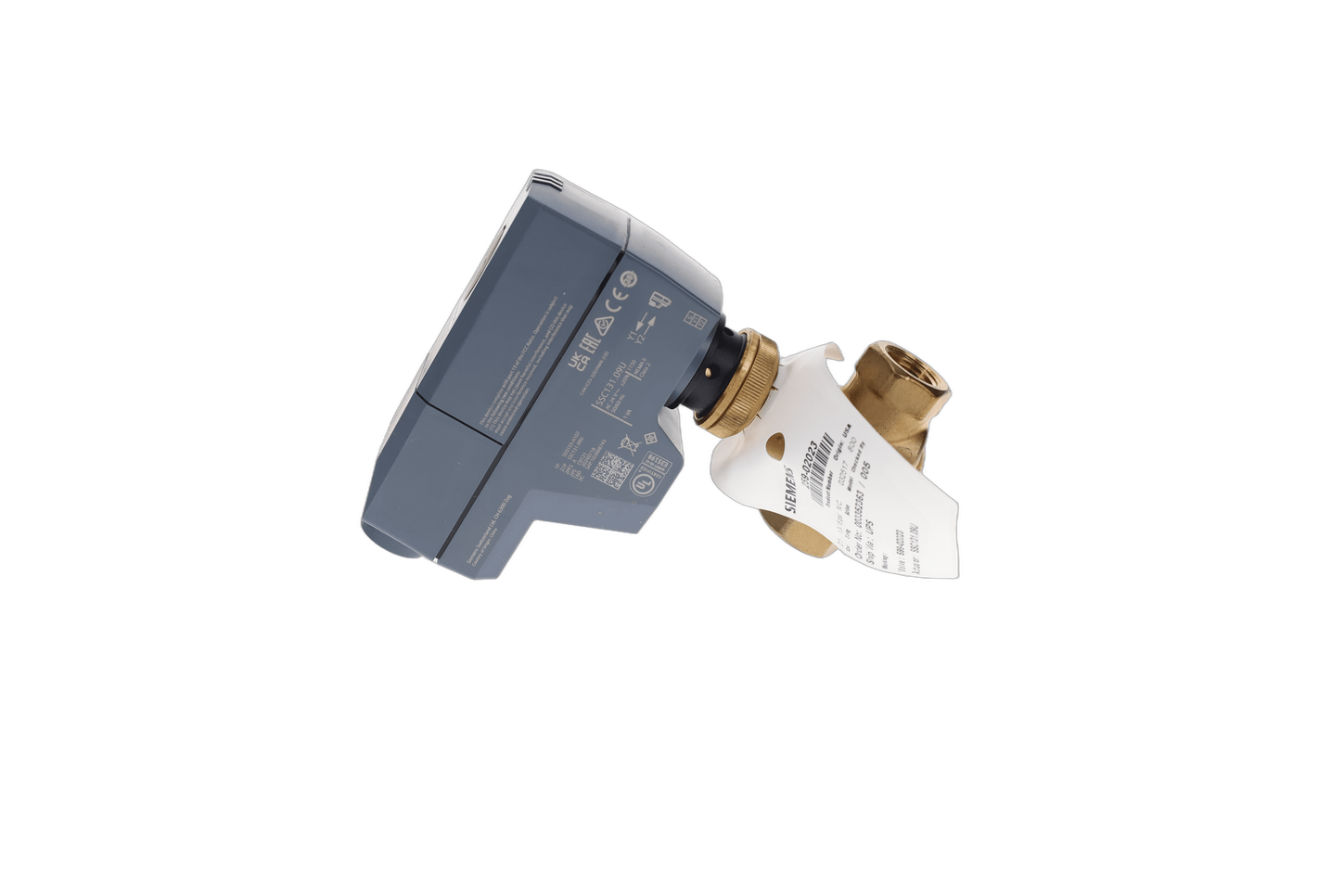

Valve assy NC ½” 2.5Cv FxF SS Trim Elect Act NSR float
$188.02
Unit3 in stock
Product Details
This Powermite 599 MT Series Normally Closed Valve Assembly features an electronic actuator with 24 volts AC operating voltage, floating and Fail In-Place. The assembly is ANSI Leakage Class IV, has a stainless steel trim and a female to female connection. This assembly has a flow rate of 2.5 Cv, and a line size of ½”.
Attributes
| Actuator Type | Electronic |
| Close Off Pressure | 50 psi |
| Control Signal | Floating control |
| End Connection | FxF |
| Fail Safe | No |
| Flow Characteristic | Modified Equal-percentage |
| Flow Coefficient Cv | 2.5000 |
| Max Differential Pressure Liquid | 50 psi |
| Max Differential Pressure Steam | 5 psi |
| Max Inlet Pressure Absolute Liquid | 400 psi |
| Max Inlet Pressure Absolute Steam | 5 psi |
| Medium | Steam;Water;Water with anti-freeze |
| Medium Temperature | 35…226 ºF |
| Medium Temperature F Max | 226 ºF |
| Medium Temperature F Min | 35 ºF |
| Operating Voltage | 24 VAC |
| Port Configuration | 2-Way Normally closed |
| Spring Return Function | Non-spring return functionality |
| Supply Voltage | 24 VAC |
| Trim Material | Stainless Steel |
| Valve Size | 0.5 in |
| Valve Type | Two-way |
Specifications
| SKU | CS5316455 |
|---|---|
| MPN | 259-02023 |
| UPC/EAN | 1P259-02023 |
