Siemens 245-00233
SKU: CS5316263MPN: 245-00233UPC/EAN: 804766012044

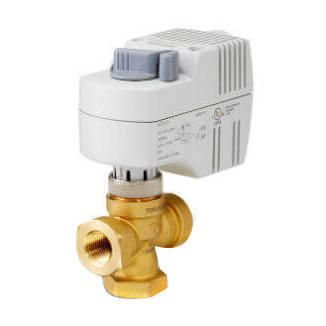

Zone valve, 3-way, 1”, 7.0 Cv, NPT w/ 24Vac 0-10Vdc NSR actuator
$233.12
UnitAvailable on backorder
Product Details
Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 1-inch; Flow rate 7.0 Cv; SSA61U 0-10Vdc, non-spring return actuator, 24Vac, AB-A normally closed.
Attributes
| Actuator Type | Electronic |
| Close Off Pressure | 36 psi |
| Control Signal | 0…10 Vdc |
| End Connection | NPT |
| Fail Safe | No |
| Flow Characteristic | Linear |
| Flow Coefficient Cv | 7.0000 |
| Leakage Rate | ANSI Class III |
| Material Inside Set | Trim: Brass;Stem: Stainless Steel ASTM A582 Type 303;Seat: Metal-to-Metal;Packing: EPDM O-ring |
| Material Valve Body | Brass |
| Max Differential Pressure Liquid | 25 psi |
| Max Inlet Pressure Absolute Liquid | 232 psi |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 34…230 ºF |
| Medium Temperature F Max | 230 ºF |
| Medium Temperature F Min | 34 ºF |
| Operating Voltage | 24 VAC |
| Permissible Operating Pressure | max inlet pressure 232 psi |
| Port Configuration | 3-Way Diverting |
| Positioning Time | 34 s |
| Power Consumption | 2.5 VA |
| Spring Return Function | Non-spring return functionality |
| Stroke | 1/10 in |
| Supply Voltage | 24 VAC |
| Trim Material | Brass |
| Valve Body Style | Stroke-Globe |
| Valve Size | 1 in |
| Valve Type | Three-way |
Specifications
| SKU | CS5316263 |
|---|---|
| MPN | 245-00233 |
| UPC/EAN | 804766012044 |
