Siemens 243-00231
SKU: CS5316252MPN: 243-00231UPC/EAN: 804766011825

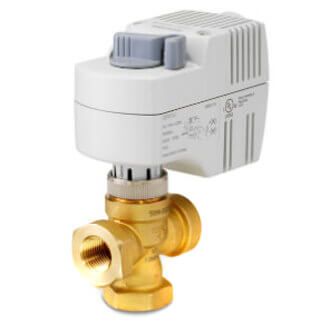

Zone valve, 3-way, ½”, 2.5 Cv, NPT w/ 24V 2-position SR actuator, fails AB-A open
$130.43
UnitAvailable on backorder
Product Details
Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.50-inch; Flow rate 2.5 Cv; SFP71U 2-position, spring return actuator; 24 Vac; fails AB-A open.
Attributes
| Actuator Type | Electronic |
| Close Off Pressure | 44 psi |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | 2-position |
| End Connection | NPT |
| Fail Safe | Yes |
| Flow Characteristic | Linear |
| Flow Coefficient Cv | 2.5000 |
| Leakage Rate | ANSI Class III |
| Material Inside Set | Trim: Brass;Stem: Stainless Steel ASTM A582 Type 303;Seat: Metal-to-Metal;Packing: EPDM O-ring |
| Material Valve Body | Brass |
| Max Differential Pressure Liquid | 25 psi |
| Max Inlet Pressure Absolute Liquid | 232 psi |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 34…230 ºF |
| Medium Temperature F Max | 230 ºF |
| Medium Temperature F Min | 34 ºF |
| Operating Voltage | 24 VAC |
| Permissible Operating Pressure | max inlet pressure 232 psi |
| Port Configuration | 3-Way Diverting |
| Positioning Time | 10 s |
| Power Consumption | 9.8 VA |
| Spring Return Function | Spring return functionality |
| Stroke | 1/10 in |
| Supply Voltage | 24 VAC |
| Trim Material | Brass |
| Valve Body Style | Stroke-Globe |
| Valve Size | 0.5 in |
| Valve Type | Three-way |
Specifications
| SKU | CS5316252 |
|---|---|
| MPN | 243-00231 |
| UPC/EAN | 804766011825 |
