Omega CF-090-J-2-60-2
SKU: CS51422MPN: CF-090-J-2-60-2

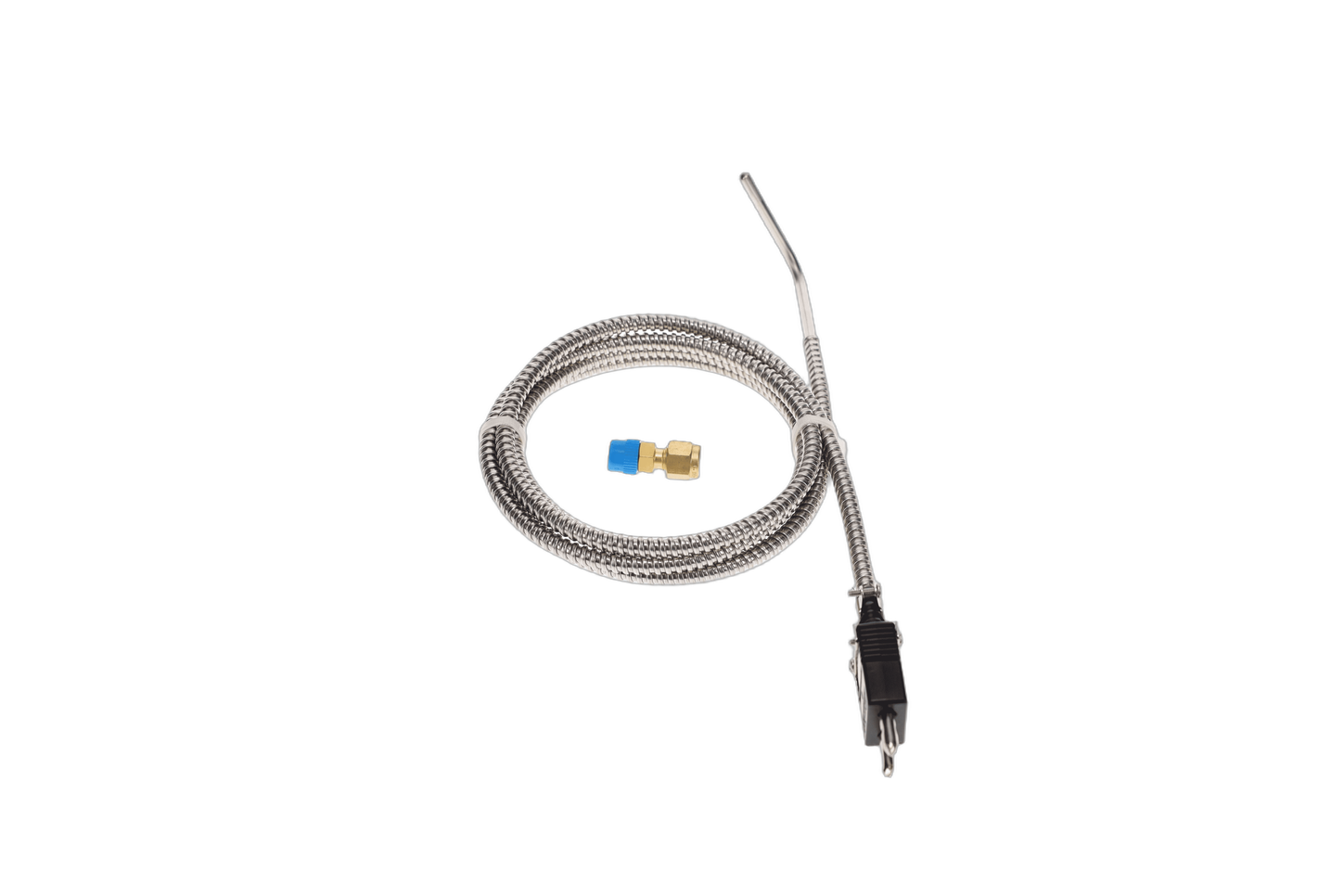

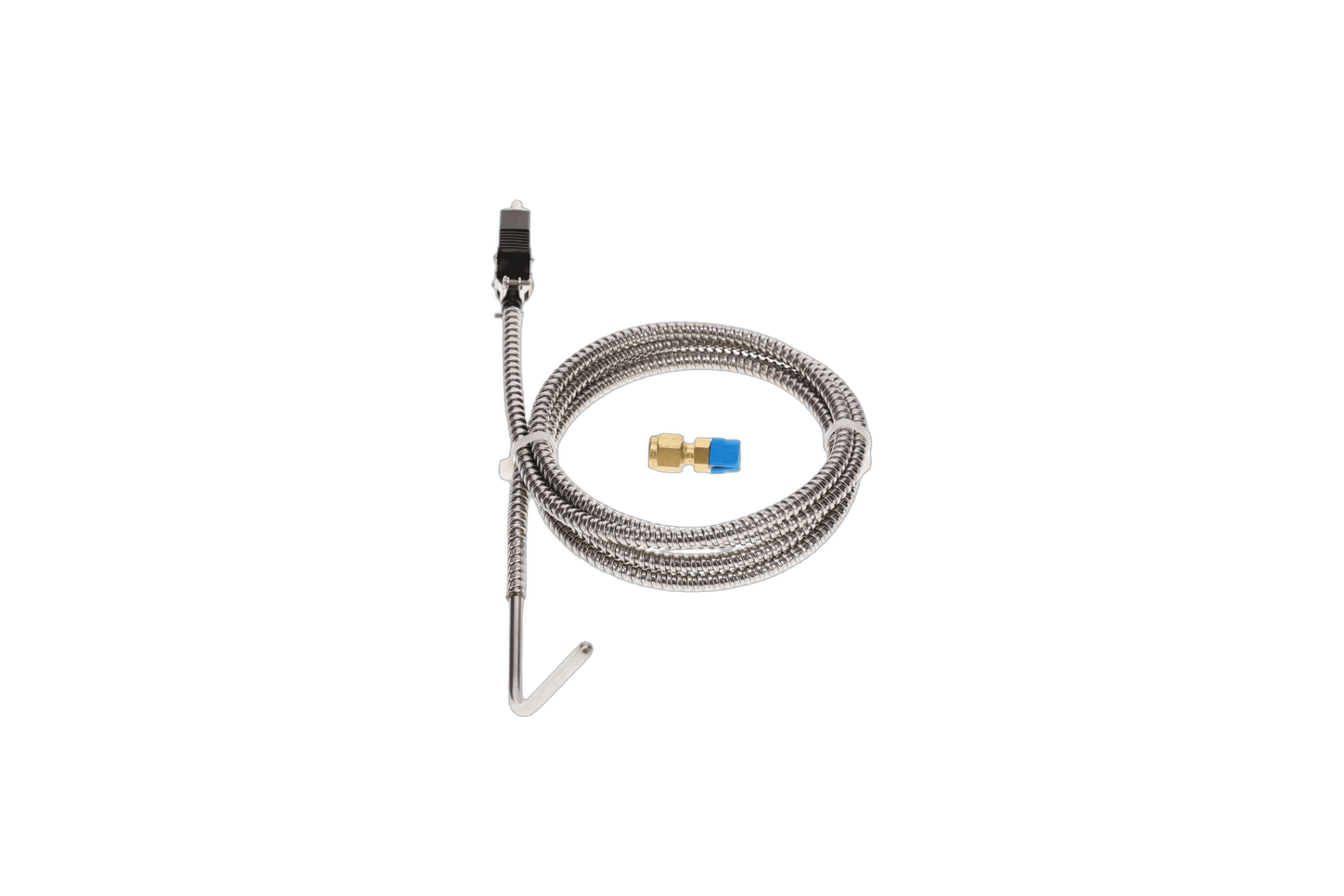

Extruder Thermocouple Probes with Compression Fittings
Product Details
- 3/16’ Diameter Probe with Pressure Sealing ⅛’ NPT Compression Fitting
- Service Temperature to 480 °C (900°F) Except for Type T Thermocouple Stainless
- A Wide Variety of Immersion Lengths, Styles and Mounting Arrangements Are Available
- Flexible 0.275’ Stainless Steel Cable (60’ Standard)
Attributes
| Bend | 90 ° |
| Series ID | CF-000-CF-090 |
| Insulation | Stainless Steel Armor Cable |
| Probe Type | Extruders/Molding Thermocouple Probes |
| Cable Length | 60 in |
| Probe Length | 2 in |
| Junction Type | Grounded |
| Cable Diameter | 0.275 in |
| Cable Material | Stainless Steel |
| Probe Diameter | 0.1875 in |
| Number of Wires | 2 |
| Sheath Material | 304 Stainless Steel |
| Country of Origin | United States |
| Thermocouple Type | J |
| Alloy Material (+) | Iron |
| Alloy Material (-) | Constantan |
| Color Code Standard | ANSI |
| Cold End Termination | 2 |
| Additional Features 2 | Dual Elements |
| Electrical Connection | Standard Male Thermocouple Connector |
| Process Connection Size | ⅛ in |
| Process Connection Type | NPT Male |
| Temperature Probe Style | Immersion Probe |
| Temperature Sensor Type | Thermocouple |
| Process Temperature, Max | 620 °C |
| Process Temperature, Min | 0 °C |
| Armored Cable Length, Max | 40 ft |
Specifications
| SKU | CS51422 |
|---|---|
| MPN | CF-090-J-2-60-2 |
