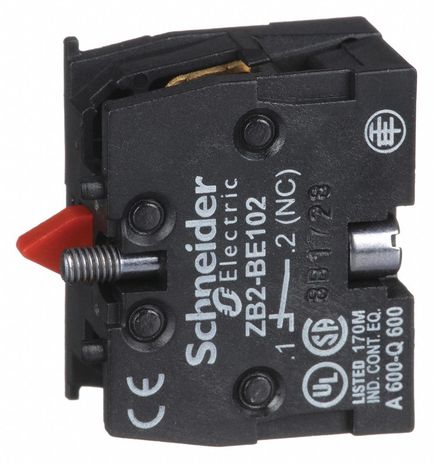

Square D ZB2BE102

CONTACT BLOCK

The ZB2BE102 is a spring return single Contact Block for slow-break operation. It features 1NC contact configuration and 13 to 15N operating force. It suitable for use with Square D Type ZA2, ZB2 pushbutton switches.

This additionnal contact block for high power switching is a separate component of diameter 22mm XB4 or XB5 ranges It features a single NC contact block and screw connection type. It is easily fitted on the back of high power switching contacts ZBE50x.

• Front mounting
• 1000000-cycle mechanical durability
• Screw clamp terminals, connection capacity - 2 x 1.5mm with cable end, 1 x 2.5mm without cable end
• Compatibility with XACA, XB4 and XB5
• 6kV conforming to IEC 60947-1 rated impulse withstand voltage
