Danfoss MTZ64-1VI

SKU: CS5083322MPN: MTZ64-1VI

Reciprocating compressor, MTZ64HM1BVE

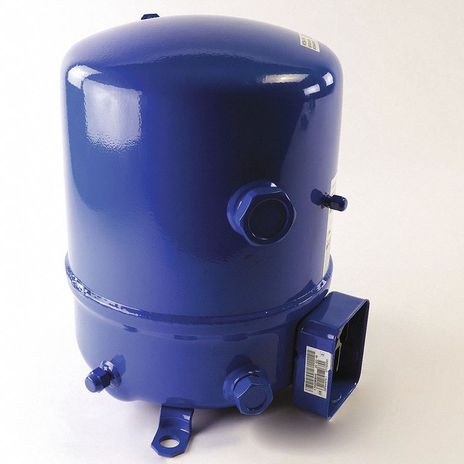

Danfoss MTZ64-1VI
Contact us for pricing and availability

Product Details

Refrigerants: R404A; R407C; R452A; R407A; R134a; R454C; R407F; R513A; R448A; R454A; R455A; R449A, Segment usage: Refrigeration MT, Compressor power supply [V]: 208-230/1/60, Packing format: Single pack

Attributes

Approval CE
Auxiliary Winding Resistance Start Winding For Single Phase Compressors Ohm 2.14
Brand Technique Reciprocating compressor
Capacity Control Fixed speed
Capacity Of Capacitor A 30 µF
Capacity Of Capacitor B 235 µF
Capacity Of Capacitor C 25 µF
China Rohs Compliance Out of scope
Colour Blue
Compressor Power Supply V 208-230/1/60
Configuration Code Single
Connection Type Rotolock
Cylinder 2
Diameter Mm 288 mm
Discharge Connection Pipe Size In ¾ in
Discharge Connection Size In 1 ¼ in
Drawing Number 8502011e
Economizer No
Eu Rohs Compliance Yes with exemptions
Eu Rohs Exemption Clause 6(a), 6(a)-I, 7(a), 7©-I, 8(b), 9(b)
Factory Hp Bar 25 bar
Factory Lp Bar 25 bar
Family MTZ
Fitting Remark (shipped with rotolock version only)
Fitting Sleeve ODF
Fitting Standard Rotolock
Frequency Hz 60
Gauge Port Hp None
Gauge Port Lp Schrader
Glass Mounting Threaded
Glass Torque Nm 50 N-m
Gp Lp Torque Nm 15 N-m
High Side Ts Max 150 °C
High Side Ts Min -35 °C
High Side Volume 0.6 L
High Value Of Nominal Voltage At 60Hz V 230 V
High Value Of Voltage Range At 60Hz V 253 V
In Scope Of Weee And Contain Batteries No
Ip Protection Class IP54 (with cable gland)
Low Side Ts Max 50 °C
Low Side Ts Min -35 °C
Low Side Volume 16.5 L
Low Value Of Nominal Voltage At 60Hz V 208 V
Low Value Of Voltage Range At 60Hz V 187 V
Lra 143 A
Main Winding Resistance For Single Phase Compressors Ohm 0.33
Max Pressure Ps High Side 29.4 bar
Max Pressure Ps Low Side 22.6 bar
Mcc 46 A
Model Number MTZ64HM1BVE
Motor Protection Internal overload protector
Mounting Torque Nm 15 N-m
Network Power Supply V Ph Hz 220-240/1/50 208-230/1/60
Number Of Starts Per Hour Max 12
Oil Charge L 1.8 L
Oil Equalization ⅜’’ flare SAE
Oil Equalization Torque Nm 30 N-m
Oil Reference 175PZ
Packing Format Single pack
Packing Quantity 1
Phase 1
Power Connections Screw connectors 10-32 UNF x 9.5
Product Group Hermetic compressors
Product Name Description Reciprocating compressor MTZ
Reach Candidate List Substances Lead (CAS no. 7439-92-1)
Refrigerant Charge Kg Max 5 kg
Refrigerants R134a
Rotational Speed At 60Hz Rpm 3500 rpm
Scip Dossier No 9b3fb119-9852-486a-92dd-53aa9c96fd3b
Segment Usage Refrigeration MT
Shipped Fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped Mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped Oil Initial oil charge
Suction Connection Material -
Suction Connection Pipe Size In ⅞ in
Suction Connection Size In 1 ¾ in
Swept Volume Cm3 107.71 cm³
Technology Reciprocating
Test Dif Bar Max 30 bar
Test Hp Bar Max 30 bar
Test Lp Bar Max 25 bar
Torque Earth Nm 3 N-m
Torque Power Nm 3 N-m
Type MTZ064
Uk Rohs Compliance Out of scope
Voltage Of Capacitor A V 440 V
Voltage Of Capacitor B V 330 V
Voltage Of Capacitor C V 440 V
Volume 61.54 Liter

Specifications

SKUCS5083322
MPNMTZ64-1VI
