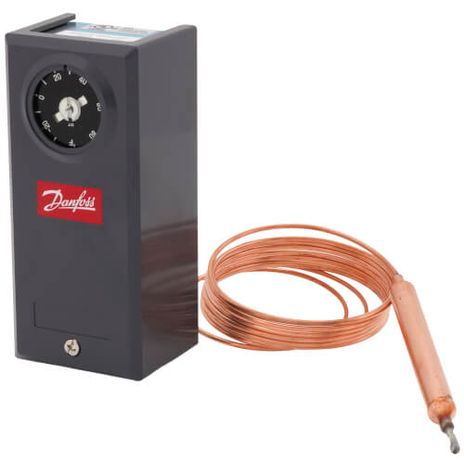

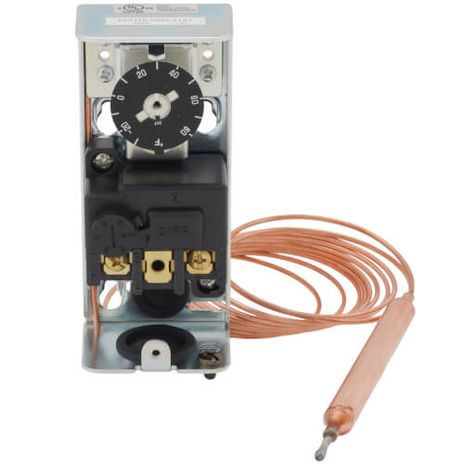

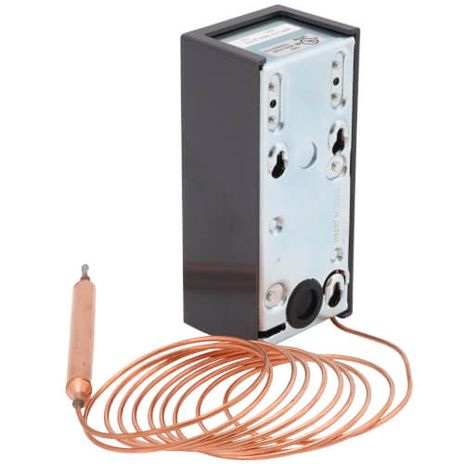

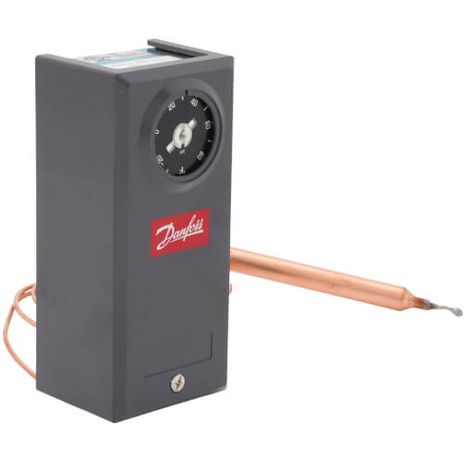

Danfoss 060L2151

KPU 19 Danfoss Temperature Switch, Remote Bulb, 80” Capillary Tube

KPU 19 thermostats are used for temperature regulation in refrigeration, freezing, air conditioning, ventilating and heating systems.

KPU 19 thermostats are fitted with Single-Pole Double-Throw (SPDT) or Single-Pole Single-Throw (SPST) contact system.

The standard KPU 19 enclosure is rated NEMA \~ 1. NEMA \~ 1 is obtained when the thermostat is mounted on a flat surface with all unused holes covered.

Features:

• Sensing Element: Remote Bulb
• Type KPU 19
• With 80” Capillary Tube
• Switch Action: SPST
• Differential: +3.6°F to +12.6°F
• Temperature Range: -30°F to +80°F
• Designed for easy installation and service
• Bottom and rear knockouts
• Easy to set differential adjustment dial
• Adhesive dial cover reduces likelihood of tampering
• Robust thermoplastic housing
