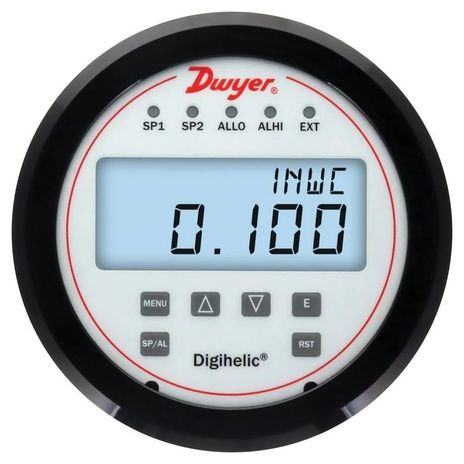

Dwyer DHC-003
SKU: CS5075524MPN: DHC-003Alternate Part #: 101951-00
DHC-003 0.5 IN
$604.62
UnitAvailable on backorder
Product Details
Differential pressure controller, range 0.5 in w.c.
Attributes
| Accuracy | ±0.5% FSO for all ranges, except 0.5 in w.c. @ ±1% FSO, and ranges at or below ±0.25 in w.c. @ ±1.5% FSO. |
| Commodity Code | 1914 |
| Communication | BACnet MS/TP or Modbus® RTU. |
| Compliance | BTL, CE. |
| Device Load | ⅛ unit load. |
| Display | Backlit LCD display, LED setpoint indicators. |
| Electrical Connection | 15 pin male high density D-sub connection. 18” (46 cm) cable with 15 conductors included. |
| Electrical Rating | 1 A @ 30 VAC/VDC. |
| Enclosure Rating | NEMA 4X (IP66). |
| Housing Material | Polycarbonate. |
| Mounting Orientation | Not position sensitive. |
| Output Signal | 4-20 mA (4-wire); 0-10 V, 0-5 V, 1-5 V, and 2-10 V (4-wire). |
| Power Consumption | 3 VA max. |
| Power Requirement | 12-28 VDC or 12-28 VAC 50 to 400 Hz. |
| Pressure Limit | Ranges > 1 in w.c.: 6 psi max operation, 6 psi burst; Ranges x0089¤ 1 in w.c.: 3.6 psi max operation, 6 psi burst. |
| Process Connection | ⅛” female NPT ports on side and back. |
| Response Time | 400 ms (damping set to 0). |
| Service | Air and non-combustible, compatible gases. |
| Set Point Adjustment | Accessible via menus. |
| Size | 5” OD (127 mm) x 1.9” (48 mm) deep. |
| Supported Baud Rate | 9600, 19200, 38400, 57600, 76800, 115200. |
| Switch Type | 2 SPDT relays. |
| Thermal Effect | .02% FS / °F (.036% FS / °C). |
| Wetted Material | Consult factory. |
| Zero And Span Adjustment | Accessible via menus. |
Specifications
| SKU | CS5075524 |
|---|---|
| MPN | DHC-003 |
| Alternate Part # | 101951-00 |
