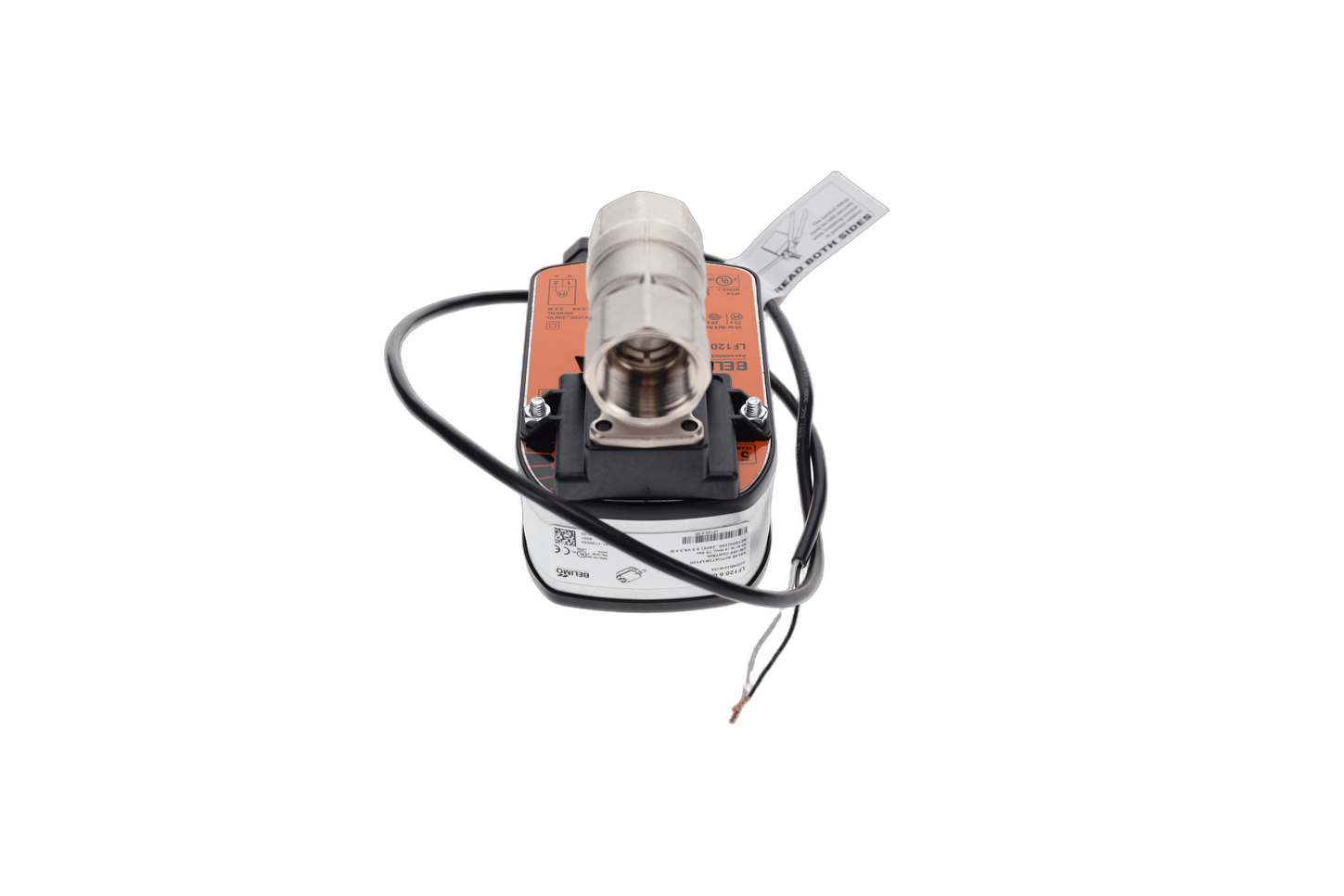

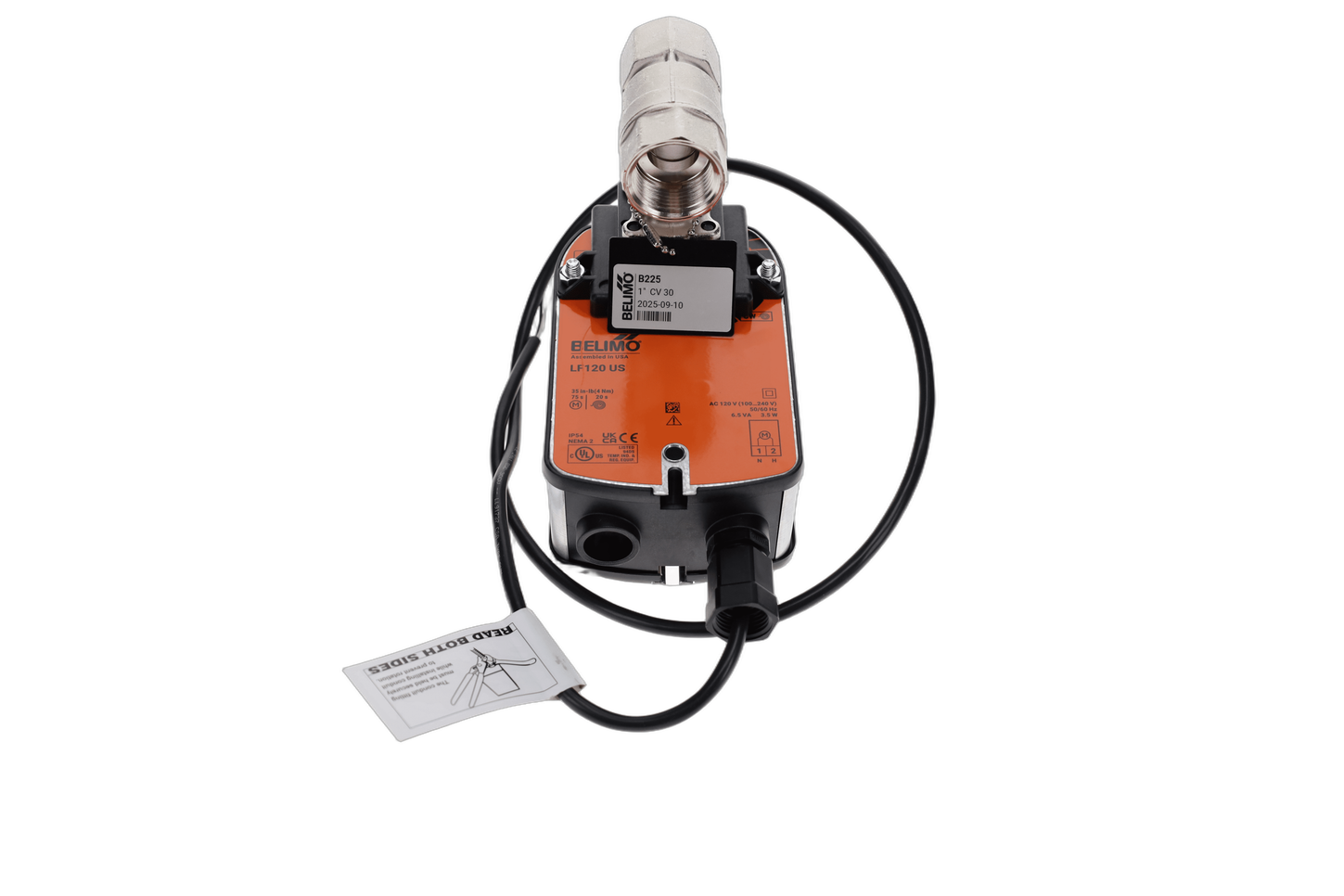

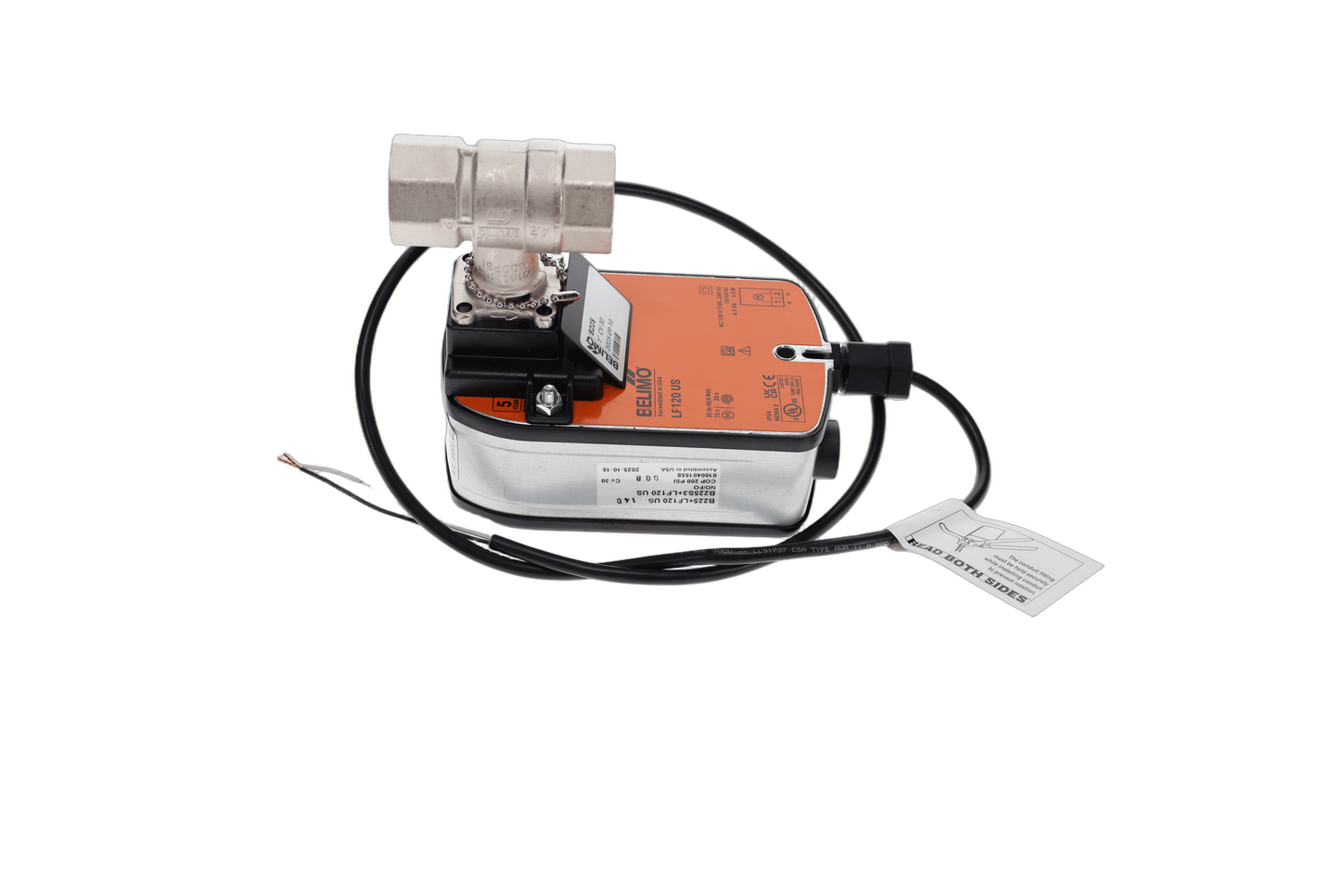

Belimo B225+LF120 US
SKU: CS502502MPN: B225+LF120 US
Characterized Control Valve (CCV), 1”, 2-way, Cv 30 |Valve Actuator, Spring return, AC 120 V, On/Off
$453.41
Unit4 in stock
Product Details
Characterized Control Valve (CCV), 1”, 2-way, Cv 30 |Valve Actuator, Spring return, AC 120 V, On/Off
Attributes
| Control | On/Off |
| Valve Size | 1” [25] |
| Cv | 30.0 |
| Flow Pattern | 2-way |
| Fail-Safe | Spring Return |
| Valve Trim | Stainless steel |
| Nominal Voltage | AC 120 V |
| Close-Off Pressure ∆Ps | 200 psi |
| Transformer Sizing | 7.5 VA |
| Enclosure | UL Enclosure Type 2 |
| Pressure Independent | NO |
| Power Supply | 120 VAC, ±10%, 50/60 Hz |
| Power Consumption In Operation | 5.5 W |
| Power Consumption In Rest Position | 3.5 W |
| Electrical Connection | 18 GA appliance cable, 3 ft [1 m], with ½” conduit connector |
| Overload Protection | electronic throughout 0…95° rotation |
| Angle Of Rotation | 90° |
| Direction Of Motion Motor | selectable with switch 0/1 |
| Position Indication | Mechanical |
| Running Time (Motor) | 75 s |
| Running Time Fail-Safe | <25 s |
| Ambient Humidity | max. 95% r.H., non-condensing |
| Ambient Temperature | -22…122°F [-30…50°C] |
| Storage Temperature | -40…176°F [-40…80°C] |
| Fluid | chilled or hot water, up to 60% glycol |
| Controllable Flow Range | 75° |
| Pipe Connection | NPT female ends |
| Fluid Temp Range (Water) | 0…250°F [-18…120°C] |
| Degree Of Protection Iec/En | IP54 |
| Degree Of Protection Nema/Ul | NEMA 2 |
| Connection | cable |
| Cv Range [Gpm] | 17…47 |
| Pipe Connection Type | internal thread |
| Kvs Range [M³/H] | 15…40 m³/h |
| Flow Characteristic | equal percentage |
| Servicing | maintenance-free |
| Valve Body | Nickel-plated brass body |
| Stem | stainless steel |
| Seat | PTFE |
| Stem Seal | EPDM (lubricated) |
| Characterized Disc | No Disc (full flow) |
| Nominal Voltage Ac | 120 V |
| Noise Level, Motor | 50 dB(A) |
| Body Pressure Rating | 600 psi |
| Quality Standard | ISO 9001 |
| O-Ring | EPDM (lubricated) |
| Noise Level, Fail-Safe | 62 dB(A) |
| Ball | stainless steel |
| Agency Listing | cULus acc. To UL 873 and CAN/CSA C22.2 No. 24-93 |
| Fail-Safe Function | Spring return |
| Control Type Web | On/Off |
| Fail-Safe | YES |
Specifications
| SKU | CS502502 |
|---|---|
| MPN | B225+LF120 US |
