Eaton 1550E-8503
SKU: CS5019678MPN: 1550E-8503UPC/EAN: 782116112463

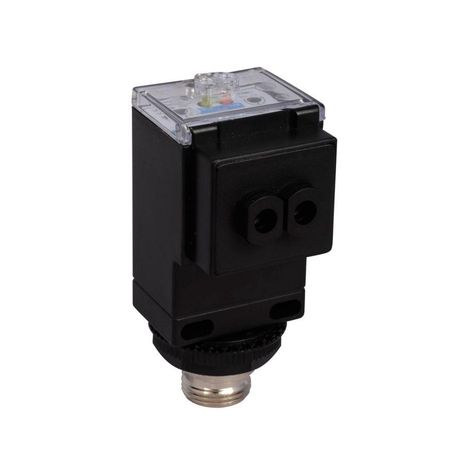

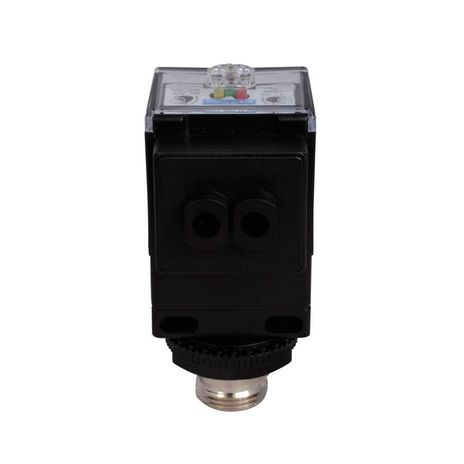

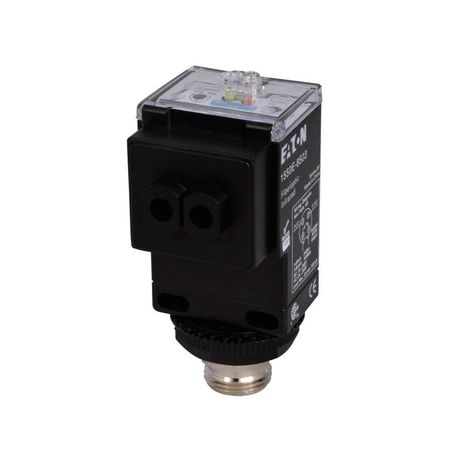

Eaton Enhanced 50 photoelectric sensor
$590.74
UnitAvailable on backorder
Product Details
Eaton Photoelectric Sensor, Fiber Optic, Forward Viewing, Fiber optic, Output (green), power (yellow), alignment (red), Mini, 300 mA at 240 Vac/dc, 4 pin, Time delayed, SPNO SSR, 24-240 Vac, 12-240 Vdc
Attributes
| Connection | Mini |
| Contact Configuration | SPNO SSR |
| Contact Rating | 300 mA at 240 Vac/dc |
| Enclosure Material | Fiberglass reinforced plastic |
| Environmental Rating | IP67, IP69K |
| Input Voltage | 24-240 Vac, 12-240 Vdc |
| Led Indicator | Output: green Power: yellow Alignment: red |
| Maximum Ac Current | 300 mA |
| Maximum Dc Current | 300 mA |
| Number Of Pins | 4.0000 |
| Operating Mode | Fiber-optic |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Output short circuit, overcircuit and reverse polarity |
| Sensor Type | Fiber optic |
| Time Delay | Time delayed |
Specifications
| SKU | CS5019678 |
|---|---|
| MPN | 1550E-8503 |
| UPC/EAN | 782116112463 |
