Eaton 14101A6513

SKU: CS5019056MPN: 14101A6513UPC/EAN: 782113824499

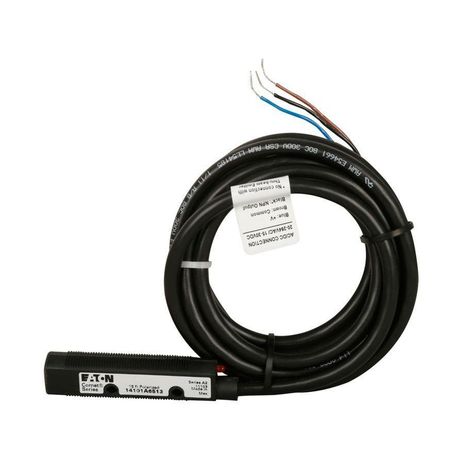

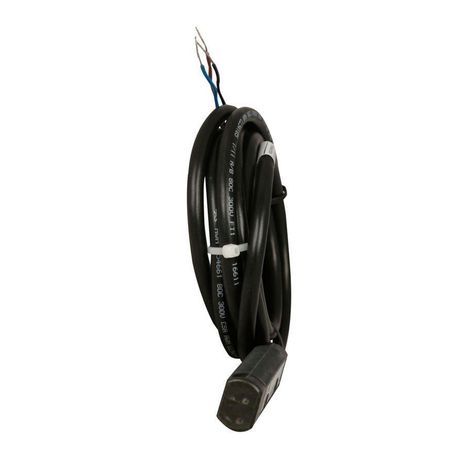

Eaton Comet 18mm tubular photoelectric sensor

Eaton 14101A6513
Eaton 14101A6513, 14101A6517, 14101AQD03, 14101AQD07
Eaton 14101A6513
Eaton 14101A6513
Eaton 14101A6513, 14101A6517, 14101AQD03, 14101AQD07
Contact us for pricing and availability

Product Details

Eaton Comet 18mm tubular photoelectric sensor, Forward Viewing, Sensor dist 15 Ft., 300 mA max AC L1 switched/DC NPN open coll, 300 mA AC/DC at 20-264Vac/15-30Vdc, 6.6 Ft.(2m) Cable, Polarized Retroreflective, 6.6 Ft.(2m)

Attributes

Cable Type Polyvinyl Chloride (PVC)
Connection 6.6 ft (2 m) cable
Contact Configuration DC: NPN open collector AC: L1 switched
Contact Rating 300 mA AC/DC at 20-264Vac/15-30Vdc
Enclosure Material Body: structural polyurethane foam Cable jacket: PVC Lens: polycarbonate
Environmental Rating NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K
Input Voltage 20-264 Vac, 15-30 Vdc
Led Indicator Output status: red
Maximum Ac Current 300 mA
Maximum Dc Current 300 mA
Operating Mode Polarized retroreflective
Operating Temperature Max 158 FAH
Operating Temperature Max Uom FAH
Operating Temperature Min -40 FAH
Operating Temperature Min Uom FAH
Protection Latching short circuit
Sensor Type Polarized retroreflective
Switch Type Photoelectric

Specifications

SKUCS5019056
MPN14101A6513
UPC/EAN782113824499
