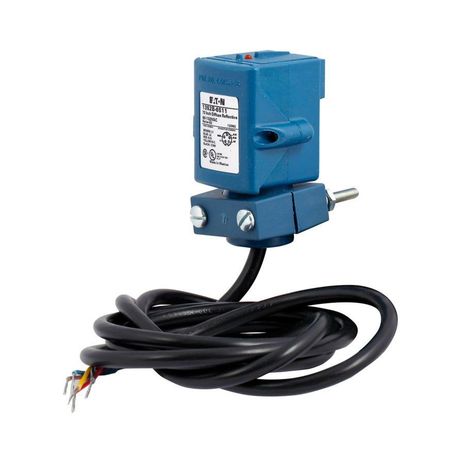

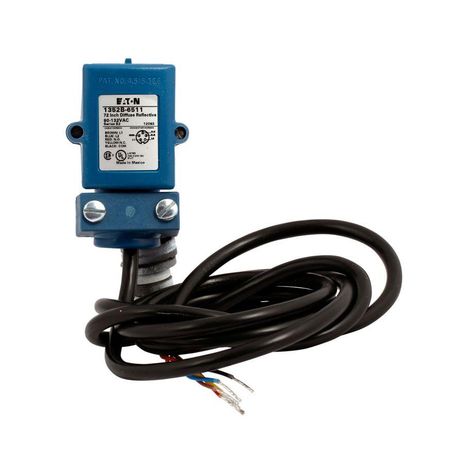

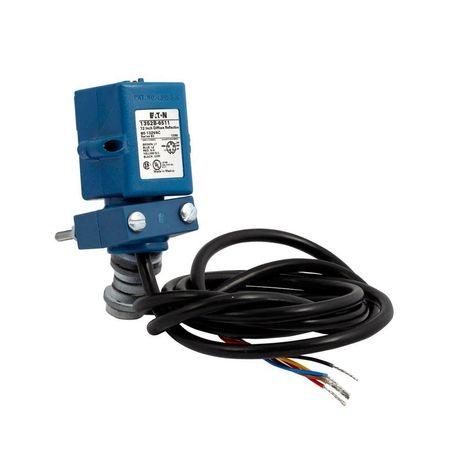

Eaton 1352B-6511

Name: Eaton 1352B-6511
Brand: Eaton
SKU: CS5018964
Price: 933.33 USD
Availability: OutOfStock

SKU: CS5018964MPN: 1352B-6511UPC/EAN: 782113823799

Eaton 50 series photoelectric sensor

Product Details

Eaton 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 72 In., Body: Noryl, Lens: Nylon enclosure, Depends on Output Device max AC and DC, 6.6 Ft. (2m) Cable, 90-132 Vac input, Diffuse Reflective, 6 Ft. (1.8m)

Attributes

Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	Depends on output device
Contact Rating	Depends on Output Device
Enclosure Material	Lens: nylon Body: noryl
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 12, NEMA 13
Input Voltage	90-132 Vac
Led Indicator	Output status: red
Maximum Ac Current	Depends on output device
Maximum Dc Current	Depends on output device
Operating Mode	Diffuse reflective
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Diffuse reflective
Switch Type	Photoelectric
