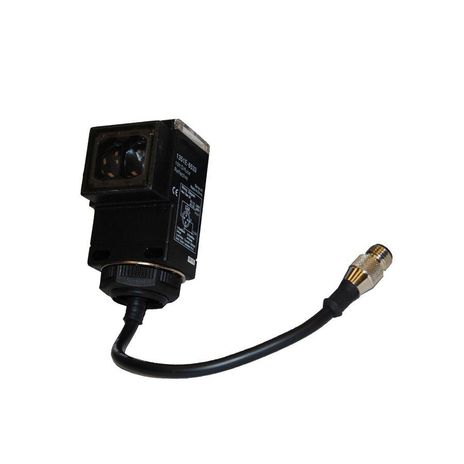

Eaton 1351E-6533
SKU: CS5018946MPN: 1351E-6533UPC/EAN: 782116111855
Eaton Enhanced 50 photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton Enhanced 50 Series Photoelectric Sensor, dist. 10 Ft., Iso SS Relay, 300 mA at 240 Vac/Vdc, 4 Pin Dual Key Micro Pigtail Connector, 12–240 Vdc 24–240 Vac input, Reverse polarity, short circuit and overload, 0.5 Ft.(.15m)
Attributes
| Cable Type | Polyvinyl Chloride (PVC) |
| Connection | 4-pin dual key micro pigtail connector |
| Contact Configuration | Isolated solid state relay |
| Contact Rating | 300 mA at 240 Vac/Vdc |
| Enclosure Material | Fiberglass reinforced plastic |
| Environmental Rating | IP67, IP69K |
| Input Voltage | 12-240 Vdc, 24-240 Vac |
| Led Indicator | Power on: yellow Output status: green Marginal gain: red |
| Maximum Ac Current | 300 mA |
| Maximum Dc Current | 300 mA |
| Operating Mode | Diffuse reflective |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Reverse polarity and short circuit protected |
| Sensor Type | Diffuse reflective |
| Switch Type | Photoelectric |
Specifications
| SKU | CS5018946 |
|---|---|
| MPN | 1351E-6533 |
| UPC/EAN | 782116111855 |
