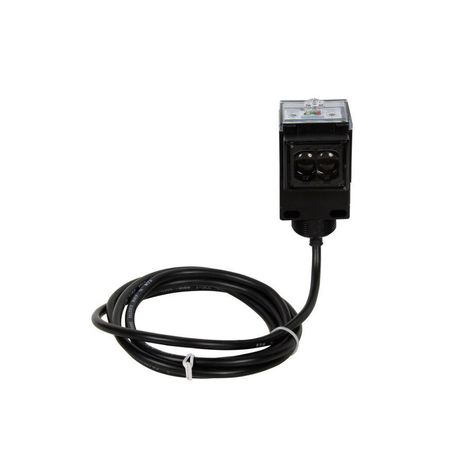

Eaton 1350E-8514

Name: Eaton 1350E-8514
Brand: Eaton
SKU: CS5018929
Price: 505.74 USD
Availability: OutOfStock

SKU: CS5018929MPN: 1350E-8514UPC/EAN: 782116111466

Eaton Enhanced 50 photoelectric sensor

Product Details

Eaton Enhanced 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 5 Ft., 3A max AC, SPDT Form C Relay, 3A at 240 Vac, 6.6 Ft. ( 2m ) Cable, 12–240 Vdc 24–240 Vac input, Yes, Diffuse Reflective, 6.6 Ft. ( 2m )

Attributes

Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	SPDT form C relay
Contact Rating	3A at 240 Vac
Enclosure Material	Fiberglass reinforced plastic
Environmental Rating	IP67, IP69K
Input Voltage	12-240 Vdc, 24-240 Vac
Led Indicator	Output status: green Marginal gain: red Power on: yellow
Maximum Ac Current	3 A
Operating Mode	Diffuse reflective
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Diffuse reflective
Switch Type	Photoelectric
Time Delay	Yes
