Eaton 1350E-6503
SKU: CS5018914MPN: 1350E-6503UPC/EAN: 782116111572

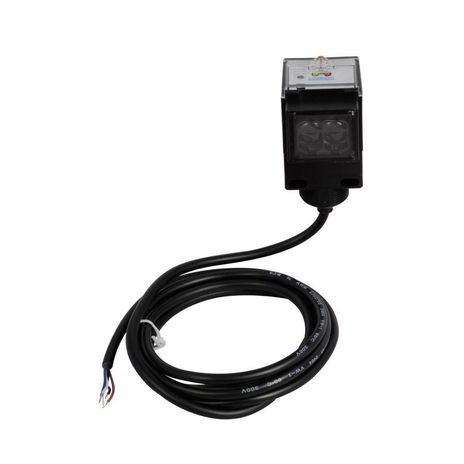

Eaton Enhanced 50 photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton Enhanced 50 Series Photoelectric Sensor, Sensor distance: 5 Ft., Iso SS Relay, 300 mA at 240 Vac/Vdc, 4 Pin Mini Connector, 12–240 Vdc 24–240 Vac input, Reverse polarity, short circuit and overload, Diffuse Reflective
Attributes
| Connection | 4-pin mini connector |
| Contact Configuration | Isolated solid state relay |
| Contact Rating | 300 mA at 240 Vac/Vdc |
| Enclosure Material | Fiberglass reinforced plastic |
| Environmental Rating | IP67, IP69K |
| Input Voltage | 12-240 Vdc, 24-240 Vac |
| Led Indicator | Power on: yellow Output status: green Marginal gain: red |
| Maximum Ac Current | 300 mA |
| Maximum Dc Current | 300 mA |
| Operating Mode | Diffuse reflective |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Reverse polarity and short circuit protected |
| Sensor Type | Diffuse reflective |
| Switch Type | Photoelectric |
Specifications
| SKU | CS5018914 |
|---|---|
| MPN | 1350E-6503 |
| UPC/EAN | 782116111572 |
