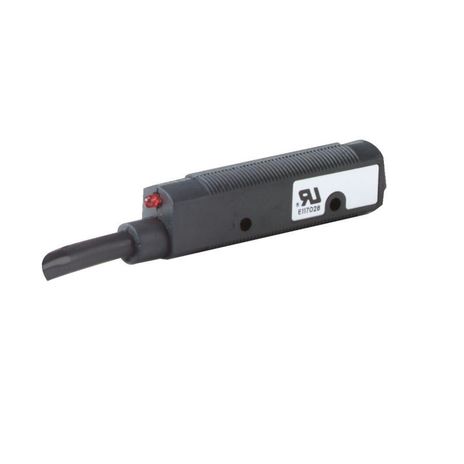

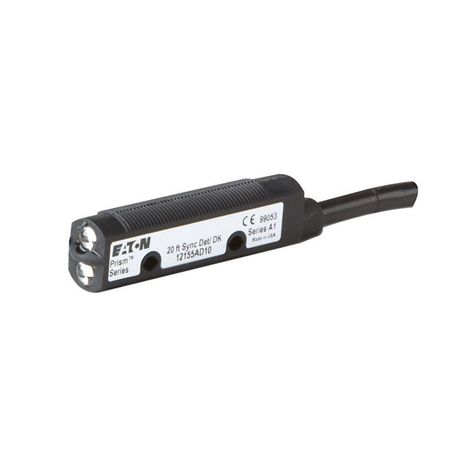

Eaton 12155AD10
SKU: CS5018483MPN: 12155AD10UPC/EAN: 782113056579
Eaton OEM Prism 18mm tubular photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton Prism series Tubular photoelectric sensor, Forward Viewing, Sensor distance: 20 Ft., Iso SS Relay, 80 mA at 132 Vac/110 mA at 132Vdc, Current Limited for loads > 32V AC/DC, Thru-beam, 6.6 Ft. (2m), 6.6 Ft. (2m) Cable
Attributes
| Cable Type | Polyvinyl Chloride (PVC) |
| Connection | 6.6 ft (2 m) cable |
| Contact Configuration | Isolated solid state relay |
| Contact Rating | 80 mA at 132 Vac / 110 mA at 132Vdc |
| Enclosure Material | Body: structural polyurethane foam Cable jacket: PVC Lens: polycarbonate |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 |
| Led Indicator | Output status: red |
| Maximum Ac Current | 80 mA |
| Maximum Dc Current | 110 mA |
| Operating Mode | Thru-beam |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Current limited for loads less than 32 Vac/dc |
| Sensor Type | Through beam |
| Switch Type | Photoelectric |
Specifications
| SKU | CS5018483 |
|---|---|
| MPN | 12155AD10 |
| UPC/EAN | 782113056579 |
You may also like
Eaton 12155RL10
Contact us for pricing and availability

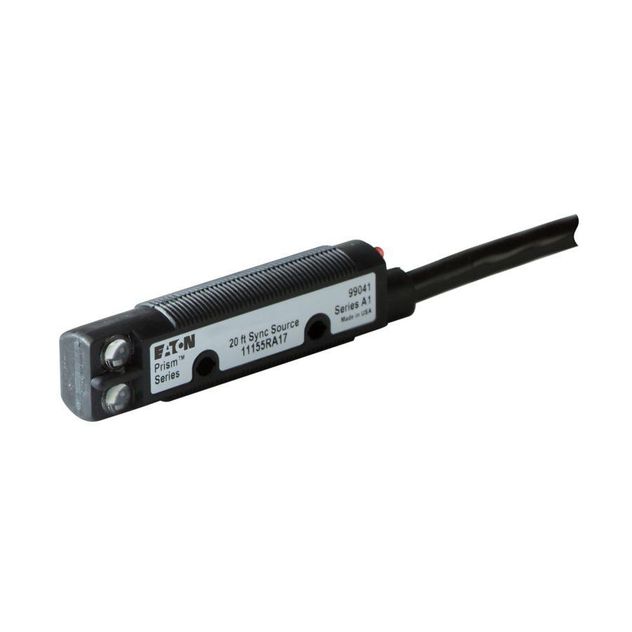

Eaton 12155RD10
