Eaton 10316H1191
SKU: CS5018167MPN: 10316H1191UPC/EAN: 782113261652

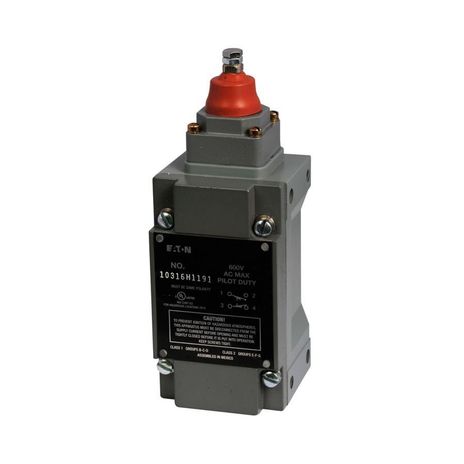

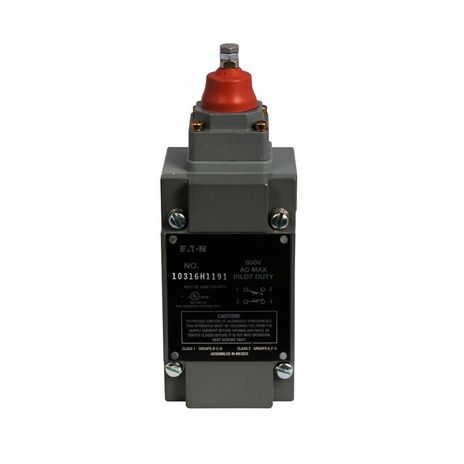

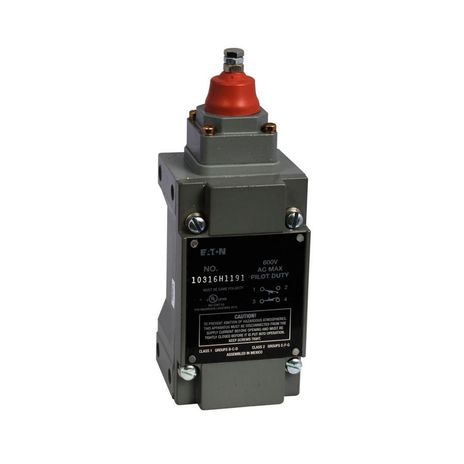

Eaton 10316 hazardous location limit switch
Contact us for pricing and availability
Product Details
Eaton 10316 hazardous location limit switch, Die Cast Aluminum enclosure, 10A max AC, 0.2A max DC, 1NO-1NC, 10A at 600Vac, 0.2A at 125Vdc, Screw Terminals, Adj. Top Pushbutton,
Attributes
| Connection | Screw terminal |
| Contact Configuration | 1 NO-1 NC |
| Contact Rating | 10A at 600Vac, 0.2A at 125Vdc |
| Enclosure Material | Die cast aluminum |
| Environmental Rating | NEMA 7 Division I Class I BCD, NEMA 9 Division I Class II EFG |
| Maximum Ac Current | 10 A |
| Maximum Dc Current | 0.2 A |
| Operating Temperature Max | 200 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -20 FAH |
| Operating Temperature Min Uom | FAH |
| Switch Type | Adjustable top pushbutton |
Specifications
| SKU | CS5018167 |
|---|---|
| MPN | 10316H1191 |
| UPC/EAN | 782113261652 |
