Eaton 1008632ECH
SKU: CS5014235MPN: 1008632ECHUPC/EAN: 786685350875
Eaton meter socket
$562.28
UnitAvailable on backorder
Product Details

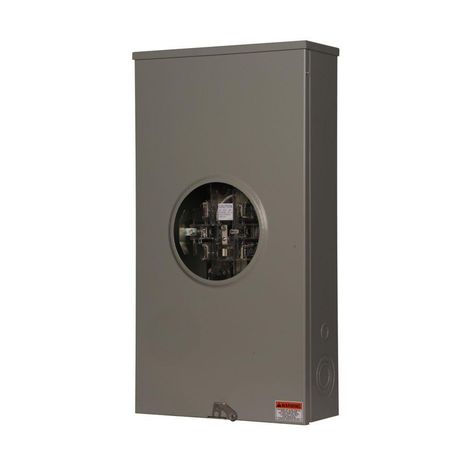

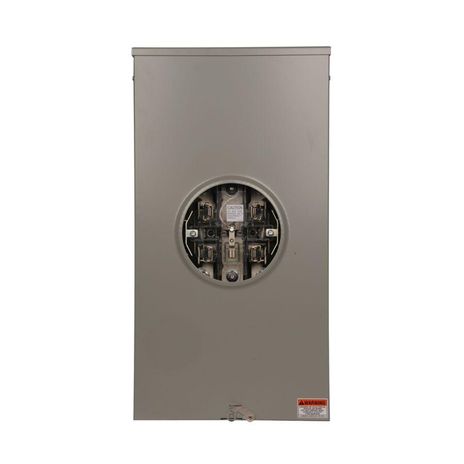

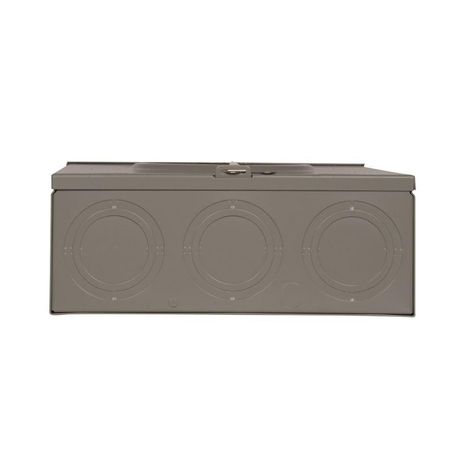

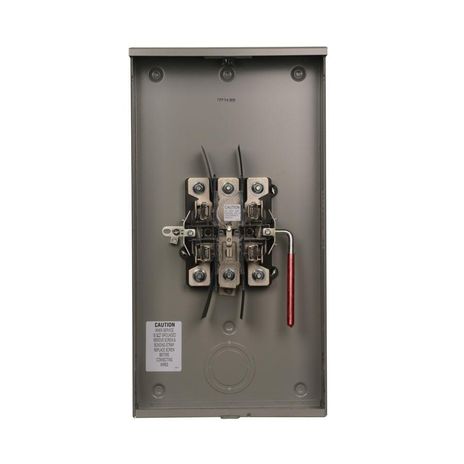

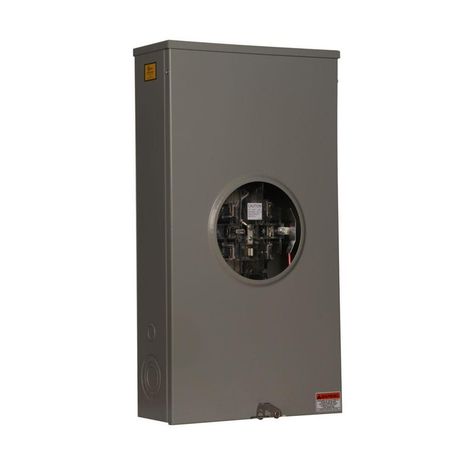

Eaton meter socket, Comm, 200A, Over/under, 3-5/16 inch hub cover plate, ⅜ inch stud, 5-jaw, 1-ph or 3-ph, ⅜ inch stud, Lever bypass, 3-wire, Ringless, 600 Vac
Attributes
| Amperage Rating | 200A |
| Bypass | Lever |
| Feed Type | Top/bottom |
| Hub Type | 3-5/16 in hub cover plate |
| Line | ⅜ in stud |
| Load | ⅜ in stud |
| Number Of Jaws | Five-jaw |
| Number Of Sockets | 1.0000 |
| Number Of Wires | Three-wire |
| Phase | Single-phase, three-phase |
| Security | Ringless |
| Special Features | Additional barriers |
| Type | Commercial |
| Voltage Rating | 600 V |
| Voltage Rating Uom | AMP |
Specifications
| SKU | CS5014235 |
|---|---|
| MPN | 1008632ECH |
| UPC/EAN | 786685350875 |
