Eaton 1008543CH
SKU: CS5014232MPN: 1008543CHUPC/EAN: 782116096428

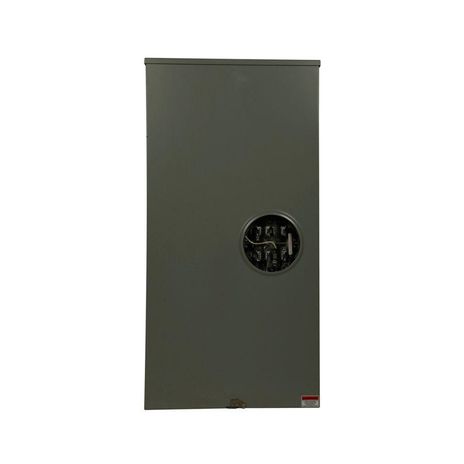

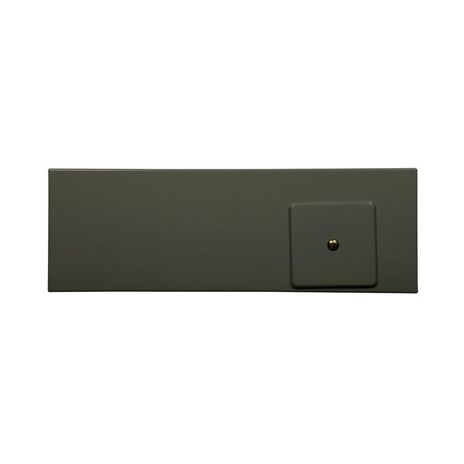

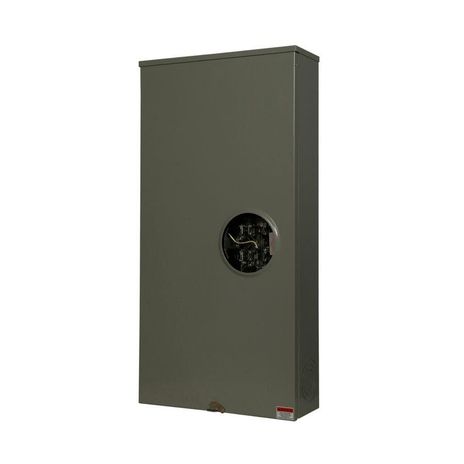

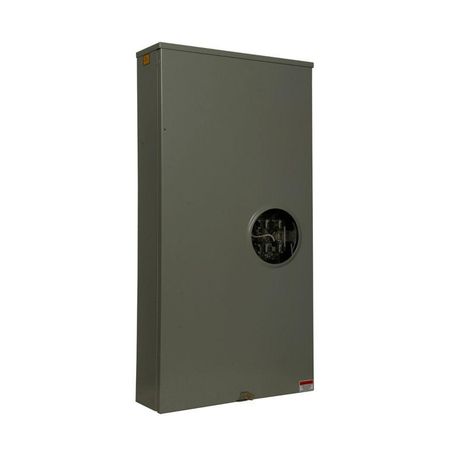

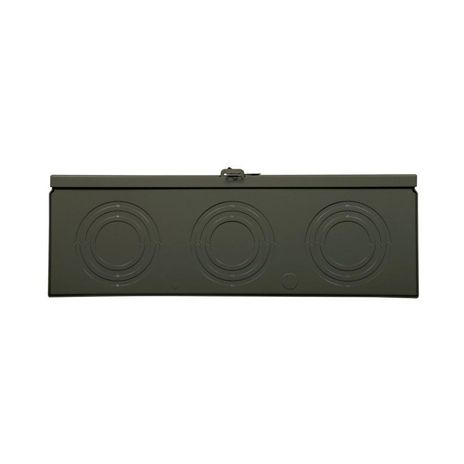

Eaton meter socket
$1,141.68
UnitAvailable on backorder
Product Details
Eaton meter socket, Comm, 320A, Over/under, 5x5 inch hub open, (1) #4-600 kcmil, (2) #1/0-250 kcmil, 7-jaw, 3-ph, (1) #4-600 kcmil, (2) #1/0-250 kcmil, Lever bypass, 4-wire, Ringless, 600 Vac
Attributes
| Amperage Rating | 320A |
| Bypass | Lever |
| Feed Type | Top/bottom |
| Hub Type | 5 x 5 hub opening |
| Line | (1) #4-600 kcmil, (2) #1/0-250 kcmil |
| Load | (1) #4-600 kcmil, (2) #1/0-250 kcmil |
| Number Of Jaws | Seven-jaw |
| Number Of Sockets | 1.0000 |
| Number Of Wires | Four-wire |
| Phase | Three-phase |
| Security | Ringless |
| Type | Commercial |
| Utility Approvals | IA : Alliant (IP&L and WP&L) WI : Alliant (IP&L and WP&L) TN : Knoxville Utility Board (KUB) |
| Voltage Rating | 600 V |
| Voltage Rating Uom | AMP |
Specifications
| SKU | CS5014232 |
|---|---|
| MPN | 1008543CH |
| UPC/EAN | 782116096428 |
You may also like
Eaton 1008541CH
$789.72Unit
Eaton 1008542CH
$717.29Unit

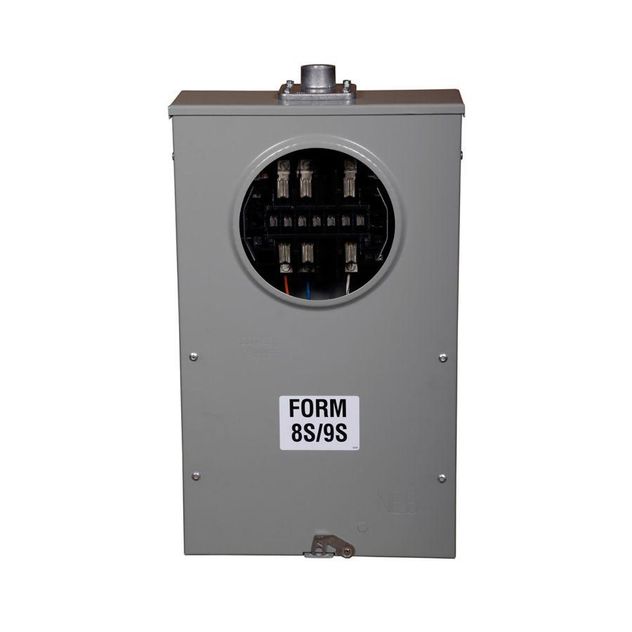

Eaton 1008539CH
