Eaton XTCEC018C10A

Name: Eaton XTCEC018C10A
Brand: Eaton
SKU: CS5007360
Availability: OutOfStock

SKU: CS5007360MPN: XTCEC018C10AUPC/EAN: 04015082775780

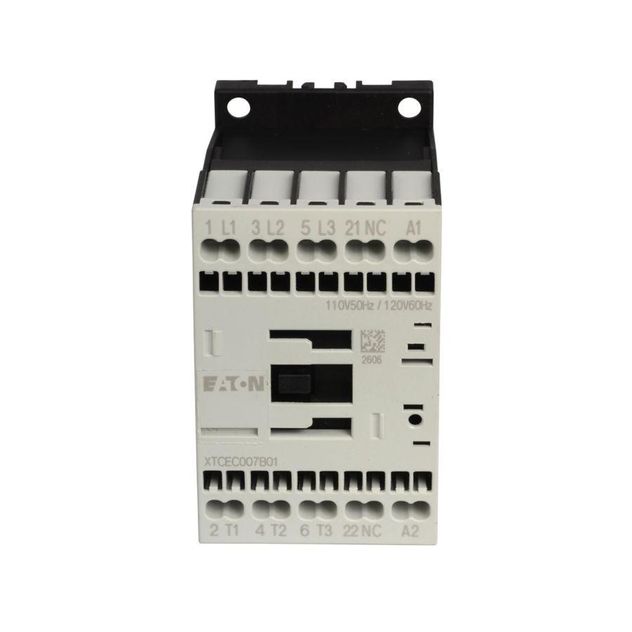

Eaton XT IEC contactor

Eaton XTCEC007B10F, XTCEC009B01G2, XTCEC009B10A, XTCEC009B10F, XTCEC009B10G2, XTCEC009B10T, XTCEC018C10A, XTCEC018C10AD, XTCEC018C10BD, XTCEC018C10C, XTCEC018C10D, XTCEC018C10E, XTCEC018C10F, XTCEC018C10G, XTCEC018C10G2

Discontinued - Contact Us For Pricing & Availability

Product Details

Eaton XT IEC contactor, 18A, 110 Vac 50 Hz, 120 Vac 60 Hz, 1NO, 18A, Frame C, 45 mm, 50-60 Hz, 2, 2, 3/ 5, 5, 10, 15 hp (⅓PH @115, 200, 230/200, 230, 460, 575 V), Three-pole, Spring cage terminals, FVNR

Attributes

Amperage Rating	18A
Coil Voltage	110-120 Vac, 50/60 Hz
Contact Configuration	1 NO
Continuous Ampere Rating	18 A
Frame Size	45 mm
Frequency Rating	50-60 Hz
Hp Rating Max	2, 2, 3/ 5, 5, 10, 15 hp (⅓PH @115,200,230/200,230,460,575 V)
Number Of Poles	Three-pole
Operation	Non-reversing
Series	XT IEC
Terminals	Spring cage terminals
Type	Full voltage non-reversing contactor
