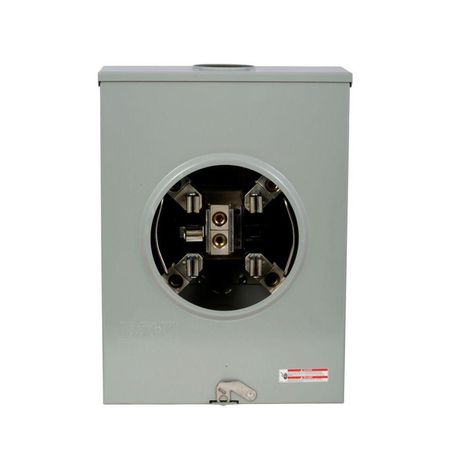

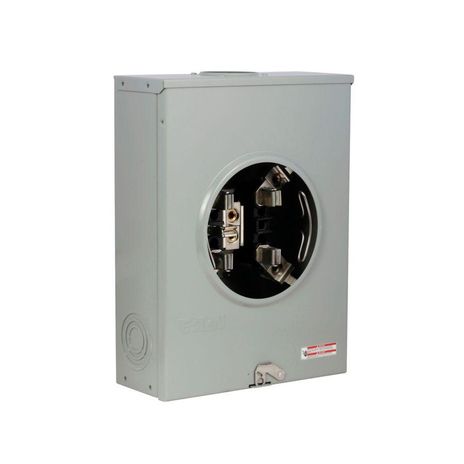

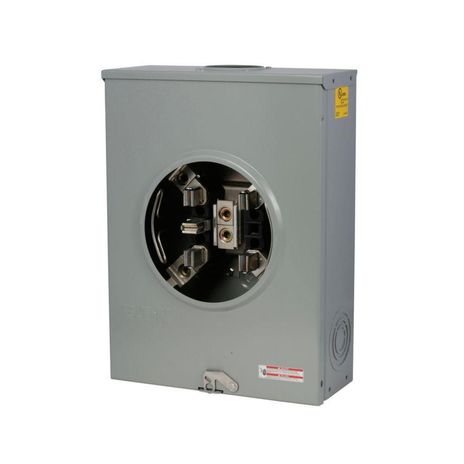

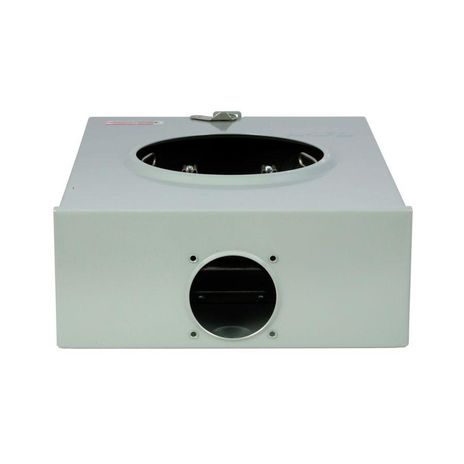

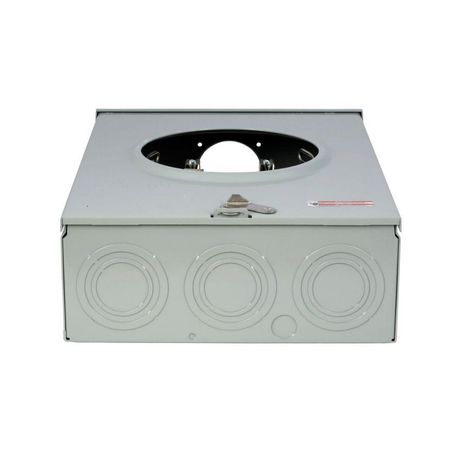

Eaton UGHTRS213BE
SKU: CS4993731MPN: UGHTRS213BEUPC/EAN: 786685217802
Eaton meter socket
Discontinued - Contact Us For Pricing & Availability
Product Details
Eaton meter socket, 1-pos resi service, 200A, Over/under, 3-5/16 inch hub open, #6-350 kcmil, 5-jaw, 1-ph, #6-350 kcmil, Horn bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, Gnded 5th terminal (9 o’clock position), 600 Vac
Attributes
| Amperage Rating | 200A |
| Bypass | Horn |
| Feed Type | Top/bottom |
| Hub Type | 3-5/16 in hub opening |
| Line | #6-350 kcmil |
| Load | #6-350 kcmil |
| Number Of Jaws | Five-jaw |
| Number Of Sockets | 1.0000 |
| Number Of Wires | Three-wire |
| Phase | Single-phase |
| Security | Ringless |
| Terminals | Grounded fifth terminal (9 o’clock position) |
| Type | Single-position residential service |
| Utility Approvals | WI : Madison Gas and Electric (MGE) |
| Voltage Rating | 600 V |
| Voltage Rating Uom | INH |
Specifications
| SKU | CS4993731 |
|---|---|
| MPN | UGHTRS213BE |
| UPC/EAN | 786685217802 |
