Eaton S811+U42N3S

Name: Eaton S811+U42N3S
Brand: Eaton
SKU: CS4989551
Price: 19574.10 USD
Availability: OutOfStock

SKU: CS4989551MPN: S811+U42N3SAlternate Part #: 3-4034-002CUPC/EAN: 786685879574

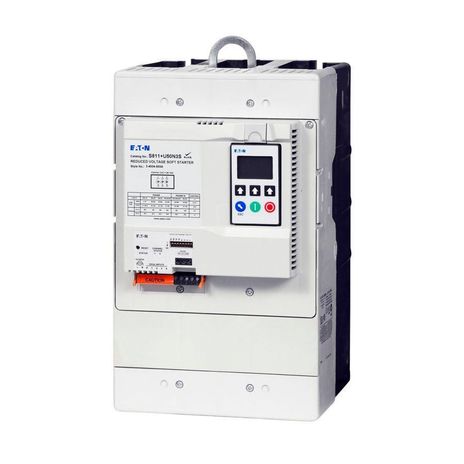

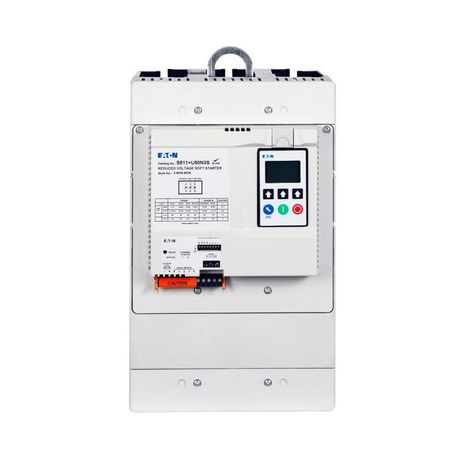

Eaton S811+ soft starter

Eaton S811+U36N3S, S811+U42N3S, S811+U50N3S

Eaton S811+T18N3S, S811+T24N3S, S811+T24V3S, S811+T30V3S, S811+U36N3S, S811+U42N3S, S811+U50N3S, S811+V10N3S, S811+V72N3S, S811+V85N3S

Product Details

Eaton S811+ soft starter, 420 A, U-frame, Three-pole, 24 V power, 200-600 V operating voltage, 47-63 Hz, 1-2 conductors, #4 AWG to 500 kcmil wire, 120 Vdc, 240 Vac, Modbus RTU, NEMA 0, LCD display, -30°C to -50°C

Attributes

Ac Current Max	240 Vac
Amperage Rating	420A
Communication	Modbus RTU
Dc Current Max	120 Vdc
Display Material	LCD
Frame Size	U
Frequency Rating	47-63 Hz
Module Interface	Digital interface module
Nema Rating	NEMA 0
Number Of Poles	Three-pole
Operating Temperature Max	50 CEL
Operating Temperature Max Uom	CEL
Operating Temperature Min	-30 CEL
Operating Temperature Min Uom	CEL
Operating Voltage	200-600 V
Power Supply	24 V
Size	NEMA 0
Type	Soft starter
Used With	Three-phase motors
Wire Size	#4 AWG-500 kcmil
