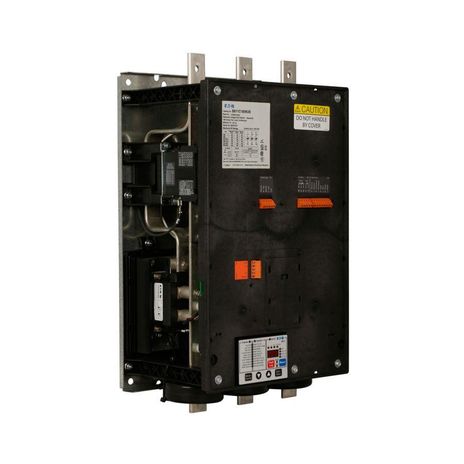

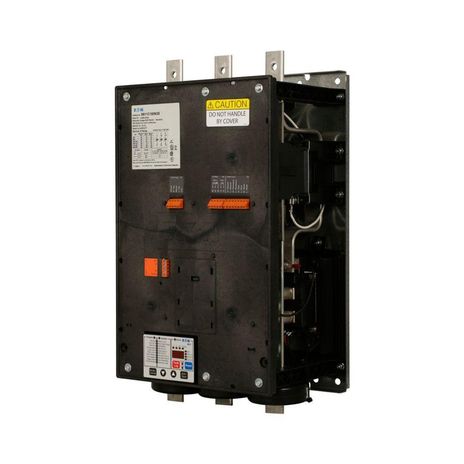

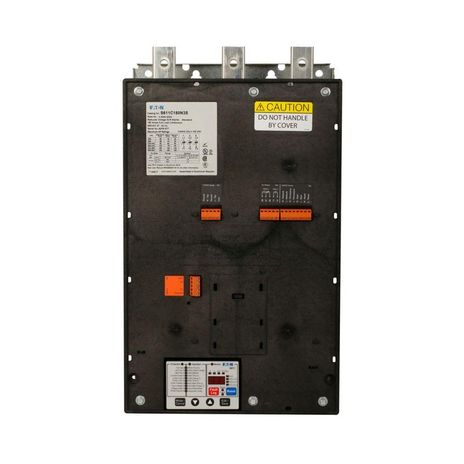

Eaton S611C180P3S

Name: Eaton S611C180P3S
Brand: Eaton
SKU: CS4989468
Price: 9543.21 USD
Availability: OutOfStock

SKU: CS4989468MPN: S611C180P3SAlternate Part #: 3-3052-004BUPC/EAN: 786685480466

Eaton S811+/S801+ soft starter

Product Details

S611 Soft Starter, Frame C, 180A, 150 hp, 480V, 90-180 FLA, 108-132V operating, #22-12 AWG, 1 conductor, Vertical mounting, 2 Slots, Pump control, Pump control, FDC circuit breaker, Class RK5/K5/J Fuse

Attributes

Amperage Rating	180A
Circuit Breaker Type	FDC
Frame Size	C
Frequency Rating	47-63 Hz
Full Load Current Range	90-180 FLA
Fuse Size	Class J Class K5 Class RK5
Horsepower	150 hp
Mounting Method	Vertical
Number Of Conductors	1
Number Of Slots	2
Operating Temperature Max	50 CEL
Operating Temperature Max Uom	CEL
Operating Temperature Min	-20 CEL
Operating Temperature Min Uom	CEL
Operating Voltage	108-132 V
Options	Pump control
Phase	Three-phase
Type	Pump control
User Interface	LCD
Voltage Rating	480 V
Voltage Rating Uom	CEL
Wire Size	#22-12 AWG
