Eaton RS2-12-C3

SKU: CS4978722MPN: RS2-12-C3UPC/EAN: 786685884707

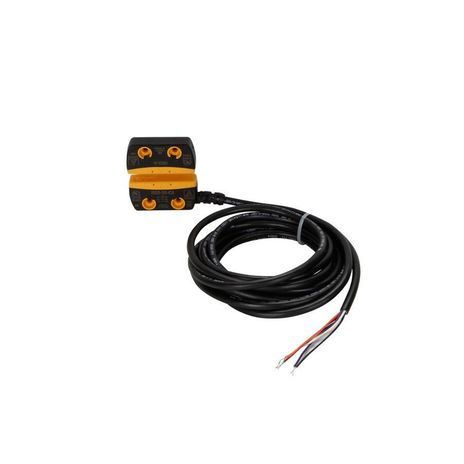

Eaton RS-Titan non-contact door interlock safety switch

Eaton RS2-12-C3
Eaton RS2-12-C3
Eaton ACCESSORIES-TP-10-KG, BUS256A30-20, BUS266LINK-01B1, C22-D-G-K10-P1, C22-D-G-K10-P3, C22-D-G-K10-P30, C22-D-G-K10-P31, C22-D-G-K10-P32, C22-D-G-K10-P5, C22-D-G-K10-P62, C22-D-G-K10-P65, C22-D-R-K01-P1, C22-D-R-K01-P3, C22-D-R-K01-P30, C22-D-R-K01-P31
Eaton RS2-12-C3
Eaton RS2-12-C3
Contact us for pricing and availability

Product Details

Eaton RS series Safety interlock switch, Magnetic Reed Switch, Polyamide enclosure, 300 mA max DC, 1 Normally Open and 2 Normally Closed, 300 mA at 24 Vdc, 10 Ft. ( 3m ) Cable, \< 10% accuracy, 10 Ft. ( 3m )

Attributes

Accuracy < 10%
Cable Type Polyvinyl Chloride (PVC)
Connection 10 ft (3 m) cable
Contact Configuration 1 NO-2 NC
Contact Rating 300 mA at 24 Vdc
Enclosure Material Polyamide
Environmental Rating IP67, IP69K
Maximum Dc Current 300 mA
Operating Temperature Max 131 FAH
Operating Temperature Max Uom FAH
Operating Temperature Min 14 FAH
Operating Temperature Min Uom FAH
Switch Type Magnetic reed switch
Type LIMIT SWITCHES

Specifications

SKUCS4978722
MPNRS2-12-C3
UPC/EAN786685884707
