Eaton RS2-11-Q4
SKU: CS4978719MPN: RS2-11-Q4UPC/EAN: 786685884738

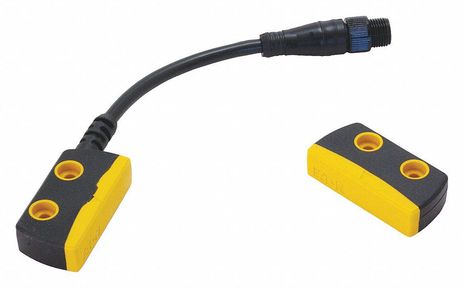

Eaton RS-Titan non-contact door interlock safety switch
Contact us for pricing and availability
Product Details
Eaton RS-Titan non-contact door interlock safety switch, Polyamide enclosure, 300 mA max DC, 1 Normally Open and 1 Normally Closed, 300 mA at 24 Vdc, 4 Pin M12 Connector, \< 10% accuracy, 3 In. ( .08m ), IP67, IP69K Encl
Attributes
| Accuracy | < 10% |
| Cable Type | Polyvinyl Chloride (PVC) |
| Connection | 4-pin M12 connector |
| Contact Configuration | 1 NO-1 NC |
| Contact Rating | 300 mA at 24 Vdc |
| Enclosure Material | Polyamide |
| Environmental Rating | IP67, IP69K |
| Maximum Dc Current | 300 mA |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | 14 FAH |
| Operating Temperature Min Uom | FAH |
| Switch Type | Magnetic reed switch |
| Type | Mechanical Limit Switches |
Specifications
| SKU | CS4978719 |
|---|---|
| MPN | RS2-11-Q4 |
| UPC/EAN | 786685884738 |
