Eaton PDG33MH250D5YL

SKU: CS4949069MPN: PDG33MH250D5YLUPC/EAN: 786679736319

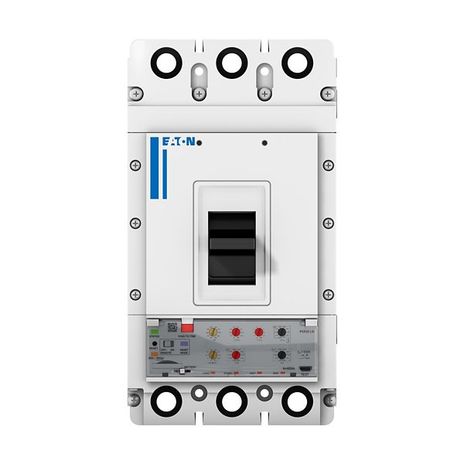

Eaton Power Defense molded case circuit breaker

Eaton PDF33F0125D2DJ, PDF33F0125D2DL, PDF33F0125D2DN, PDF33F0125D2MJ, PDF33F0125D2ML, PDF33F0125D2MN, PDF33F0125D2WJ, PDF33F0125D2WL, PDF33F0125D2WN, PDF33F0125D2YJ, PDF33F0125D2YL, PDF33F0125D2YN, PDF33F0125D3DJ, PDF33F0125D3DL, PDF33F0125D3DN
Eaton PDG33F0125D2DL, PDG33F0125D2WL, PDG33F0125D2YL, PDG33F0125D3DL, PDG33F0125D3YL, PDG33F0250D2DL, PDG33F0250D2WL, PDG33F0250D2YK, PDG33F0250D2YL, PDG33F0250D3DK, PDG33F0250D3DL, PDG33F0250D3ML, PDG33F0250D3YL, PDG33F0400D2DL, PDG33F0400D2WL
Eaton PDF33F0125D2DJ, PDF33F0125D2DK, PDF33F0125D2DL, PDF33F0125D2DN, PDF33F0125D2MJ, PDF33F0125D2MK, PDF33F0125D2ML, PDF33F0125D2MN, PDF33F0125D2WJ, PDF33F0125D2WK, PDF33F0125D2WL, PDF33F0125D2WN, PDF33F0125D2YJ, PDF33F0125D2YK, PDF33F0125D2YL
Eaton PDF33F0125D2DJ, PDF33F0125D2DL, PDF33F0125D2DN, PDF33F0125D2MJ, PDF33F0125D2ML, PDF33F0125D2MN, PDF33F0125D2WJ, PDF33F0125D2WL, PDF33F0125D2WN, PDF33F0125D2YJ, PDF33F0125D2YL, PDF33F0125D2YN, PDF33F0125D3DJ, PDF33F0125D3DL, PDF33F0125D3DN
Eaton PDG33F0125D2DL, PDG33F0125D2WL, PDG33F0125D2YL, PDG33F0125D3DL, PDG33F0125D3YL, PDG33F0250D2DL, PDG33F0250D2WL, PDG33F0250D2YK, PDG33F0250D2YL, PDG33F0250D3DK, PDG33F0250D3DL, PDG33F0250D3ML, PDG33F0250D3YL, PDG33F0400D2DL, PDG33F0400D2WL
Contact us for pricing and availability

Product Details

Power Defense Globally Rated, Frame 3, Three Pole, 250A-High, 65kA/480V, PXR20D ARMS LSIG w/ Modbus RTU, CAM Link, ZSI and Relays, Std Term Load Only (PDG3X3TA401H)

Attributes

Amperage Rating 250A High Override
Circuit Breaker Frame Type Complete breaker
Circuit Breaker Type PD3 Global
Class Class A
Communication Modbus RTU and CAM Link
Frame 3
Interrupt Rating 65 kAIC at 480 Vac
Interrupt Rating Range 50 kAIC Icu/ 30 kAIC Ics/ 105 kAIC Icm @480V Brazil (IEC) 30 kAIC Icu/ 15 kAIC Ics/ 63 kAIC Icm @525V South Africa (IEC) 65 kAIC @480V (UL) 22 kAIC Icu @250 Vdc 100 kAIC Icu/ 100 kAIC Ics/ 220 kAIC Icm @240V (IEC) 70 kAIC Icu/ 53 kAIC Ics/ 154 kAIC Icm @380-415V (IEC) 50 kAIC Icu/ 40 kAIC Ics/ 105 kAIC Icm @440V (IEC) 15 kAIC Icu/ 7.5 kAIC Ics/ 31.5 kAIC Icm @690V (IEC) 35 kAIC @600V (UL/CSA) 100 kAIC @240V (UL)
Number Of Poles Three-pole
Rated Operation Voltage Ue At Ac Max 600.0000
Special Features ZSI / Modbus / Relays / CAM
Switch Off Technique Electronic
Terminals Standard Terminals Load Only
Trip Type PXR 20D LSIG w/ARMS
Voltage Rating 600 Vac
Voltage Rating Max 600 VLT
Voltage Rating Max Uom VLT
Voltage Rating Uom VLT

Specifications

SKUCS4949069
MPNPDG33MH250D5YL
UPC/EAN786679736319
