Eaton PDG24P0070TFFJ
SKU: CS4940273MPN: PDG24P0070TFFJAlternate Part #: 81D6503P10UPC/EAN: 786679320297

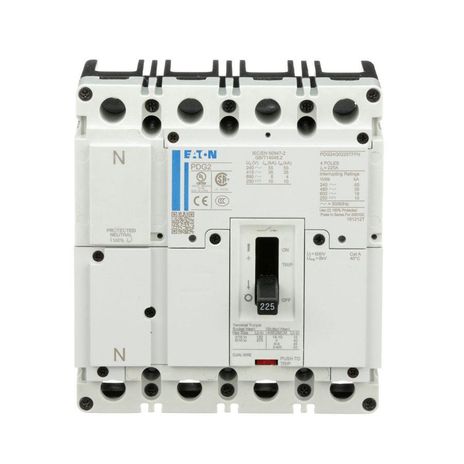

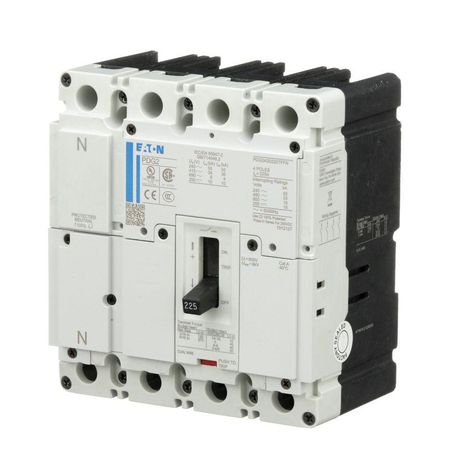

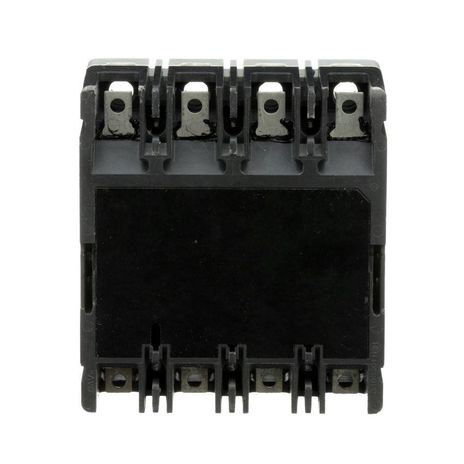

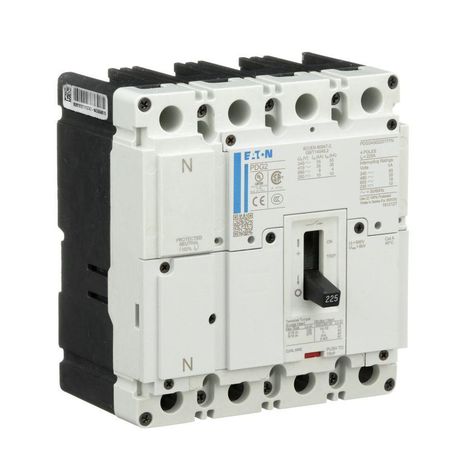

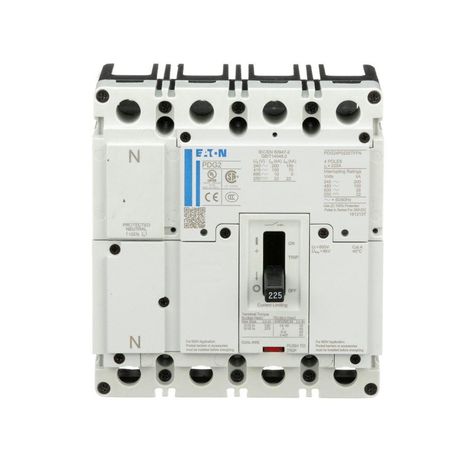

Eaton Power Defense molded case circuit breaker
$1,371.33
UnitAvailable on backorder
Product Details
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 2, Four Pole (100% N), 70A, 100kA/480V, T-M (Fxd-Fxd) TU, Standard Line and Load (PDG2X4T100)
Attributes
| Amperage Rating | 70A |
| Circuit Breaker Frame Type | Complete breaker |
| Circuit Breaker Type | PD2 Global |
| Class | Class A |
| Frame | 2 |
| Interrupt Rating | 100 kAIC at 480 Vac |
| Interrupt Rating Range | 22 kAIC Icu @125 Vdc 22 kAIC Icu @250 Vdc 100 kAIC @480V (UL) 35/25 kAIC @600V (UL/CSA) 100 kAIC Icu/ 65 kAIC Ics/ 220 kAIC Icm @440V (IEC) 10 kAIC Icu/ 5 kAIC Ics/ 21 kAIC Icm @690V (IEC) 35/25 kAIC Icu/ 18/13 kAIC Ics @525V South Africa (IEC) 200 kAIC Icu/ 150 kAIC Ics/ 440 kAIC Icm @240V (IEC) 85 kAIC Icu/ 40 kAIC Ics/ 187 kAIC Icm @480V Brazil (IEC) 100 kAIC Icu/ 70 kAIC Ics/ 220 kAIC Icm @380-415V (IEC) 200 kAIC @240V (UL) 25 kAIC @600V (UL/CSA) |
| Number Of Poles | Four-pole (100% N) |
| Protection | 100% neutral protection |
| Rated Operation Voltage Ue At Ac Max | 600.0000 |
| Switch Off Technique | Thermomagnetic |
| Terminals | Standard Line and Load |
| Trip Type | T-M (Fxd-Fxd) TU |
| Voltage Rating | 600 Vac |
| Voltage Rating Max | 600 VLT |
| Voltage Rating Max Uom | VLT |
| Voltage Rating Uom | VLT |
Specifications
| SKU | CS4940273 |
|---|---|
| MPN | PDG24P0070TFFJ |
| Alternate Part # | 81D6503P10 |
| UPC/EAN | 786679320297 |
