Siemens 256-02013
SKU: CS493428MPN: 256-02013UPC/EAN: 4034106359157
MT Series 2W Valve Asy, ANSI 250, NC, ModEqPct, ¾”, FxUM, 6.3Cv, 10-15psi SR
$179.55
Unit1 in stock
Product Details

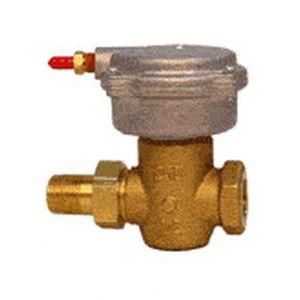

This Valve Assembly is a Powermite 599 MT Series, ANSI Class 250, 2-W, NC, Modified Eq Pct, 6.3 Cv, FxUM, ¾”, , Brass Body, Includes MT Series 2 In Pneumatic Actuator with 10-15 psi SR, Used for control of hot or chilled water for convectors
Attributes
| Actuator Type | Pneumatic |
| Close Off Pressure | 40 psi |
| End Connection | FxUM |
| Fail Safe | Yes |
| Flow Characteristic | Modified Equal-percentage |
| Flow Coefficient Cv | 6.3000001907349 |
| Max Differential Pressure Liquid | 25 psi |
| Max Differential Pressure Steam | 15 psi |
| Max Inlet Pressure Absolute Liquid | 400 psi |
| Max Inlet Pressure Absolute Steam | 15 psi |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 35…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 35 ºF |
| Normally Open Normally Closed | Normally Closed |
| Operating Voltage | Pneumatic |
| Port Configuration | 2-Way Normally closed |
| Spring Range | 10-15 psi |
| Trim Material | Brass |
| Valve Size | 0.75 in |
| Valve Type | Two-way |
Specifications
| SKU | CS493428 |
|---|---|
| MPN | 256-02013 |
| UPC/EAN | 4034106359157 |
