Eaton PDG23K0100P3DK
SKU: CS4934076MPN: PDG23K0100P3DKAlternate Part #: 81D6543K05UPC/EAN: 786679730553

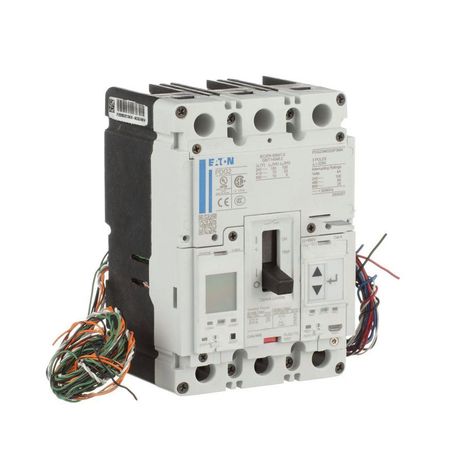

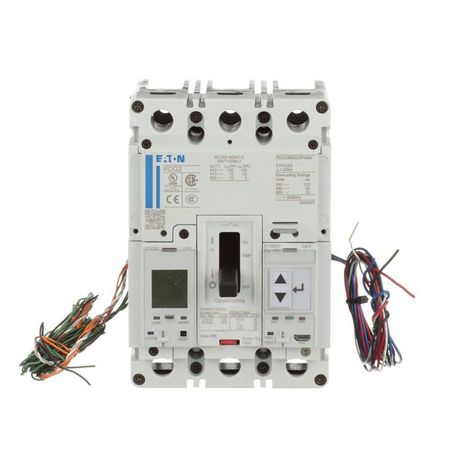

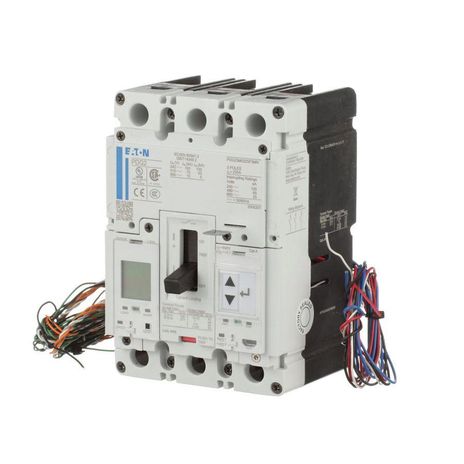

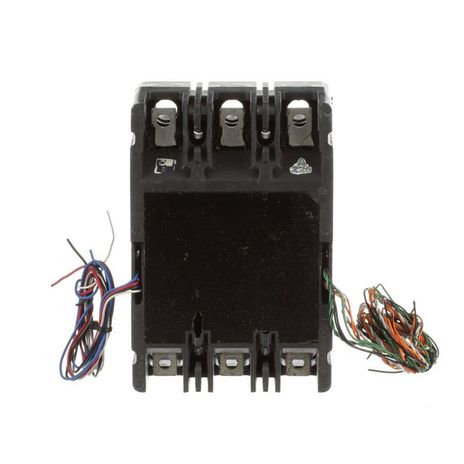

Eaton Power Defense molded case circuit breaker
$2,594.61
UnitAvailable on backorder
Product Details
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 2, Three Pole, 100A, 50kA/480V, PXR25 LSIG w/ Modbus RTU, CAM Link and Relays, Standard Terminals Line Only (PDG2X3T100)
Attributes
| Amperage Rating | 100 A |
| Circuit Breaker Frame Type | Complete breaker |
| Circuit Breaker Type | PD2 Global |
| Class | Class A |
| Communication | Modbus RTU and CAM Link |
| Frame | 2 |
| Interrupt Rating | 50 kAIC at 480 Vac |
| Interrupt Rating Range | 35 kAIC Icu/ 35 kAIC Ics/ 73.5 kAIC Icm @440V (IEC) 85 kAIC @240V (UL) 50 kAIC Icu/ 50 kAIC Ics/ 105 kAIC Icm @380-415V (IEC) 25 kAIC @600V (UL/CSA) 35 kAIC Icu/ 22.5 kAIC Ics/ 73.5 kAIC Icm @480V Brazil (IEC) 50 kAIC @480V (UL) 10 kAIC Icu/ 5 kAIC Ics/ 21 kAIC Icm @690V (IEC) 10 kAIC Icu @125 Vdc 10 kAIC Icu @250 Vdc 85 kAIC Icu/ 85 kAIC Ics/ 187 kAIC Icm @240V (IEC) 30/25 kAIC Icu/ 15/13 kAIC Ics @525V South Africa (IEC) |
| Number Of Poles | Three-pole |
| Rated Operation Voltage Ue At Ac Max | 600.0000 |
| Special Features | Modbus / Relays / CAM |
| Switch Off Technique | Electronic |
| Terminals | Standard Terminals Line Only |
| Trip Type | PXR 25 LSIG |
| Voltage Rating | 600 Vac |
| Voltage Rating Max | 600 VLT |
| Voltage Rating Max Uom | VLT |
| Voltage Rating Uom | VLT |
Specifications
| SKU | CS4934076 |
|---|---|
| MPN | PDG23K0100P3DK |
| Alternate Part # | 81D6543K05 |
| UPC/EAN | 786679730553 |
