Eaton PDG23F0020TFFJ

SKU: CS4932100MPN: PDG23F0020TFFJAlternate Part #: 81D6502F02UPC/EAN: 786679282489

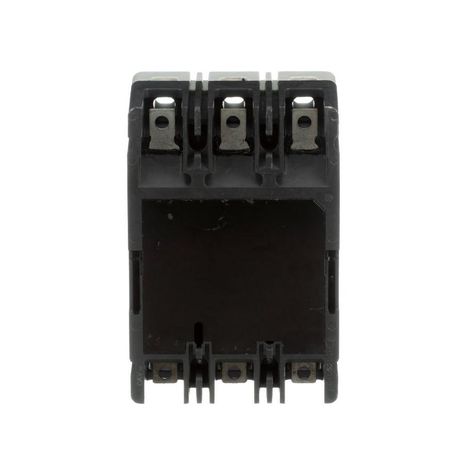

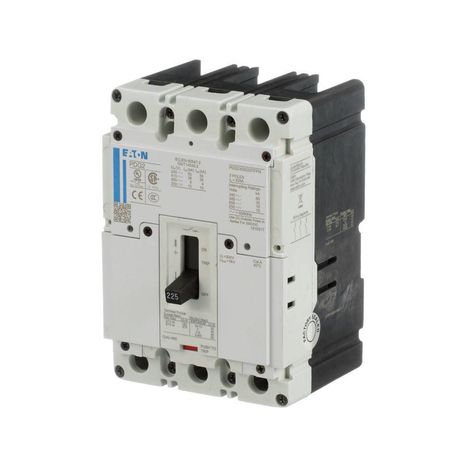

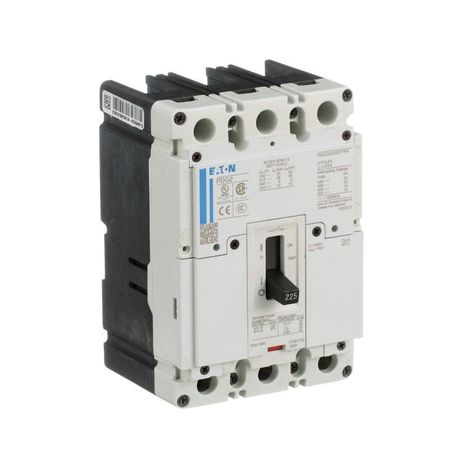

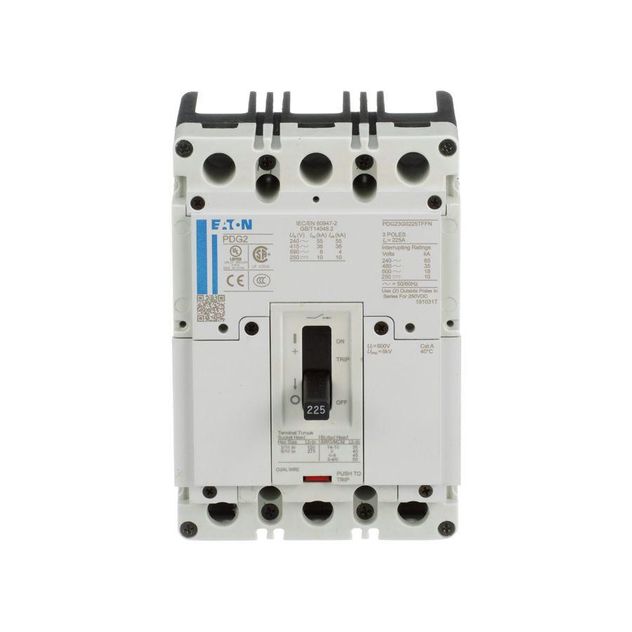

Eaton Power Defense molded case circuit breaker

Eaton PDD23F0015TFFJ, PDD23F0015TFFK, PDD23F0015TFFL, PDD23F0015TFFN, PDD23F0015VFFJ, PDD23F0015VFFK, PDD23F0015VFFL, PDD23F0015VFFN, PDD23F0020TFFJ, PDD23F0020TFFK, PDD23F0020TFFL, PDD23F0020TFFN, PDD23F0020VFFJ, PDD23F0020VFFK, PDD23F0020VFFL
Eaton PDD23F0015TFFJ, PDD23F0015TFFK, PDD23F0015TFFL, PDD23F0015TFFN, PDD23F0015VFFJ, PDD23F0015VFFK, PDD23F0015VFFL, PDD23F0015VFFN, PDD23F0020TFFJ, PDD23F0020TFFK, PDD23F0020TFFL, PDD23F0020TFFN, PDD23F0020VFFJ, PDD23F0020VFFK, PDD23F0020VFFL
Eaton PDD23F0015TFFJ, PDD23F0015TFFK, PDD23F0015TFFL, PDD23F0015TFFN, PDD23F0015VFFJ, PDD23F0015VFFK, PDD23F0015VFFL, PDD23F0015VFFN, PDD23F0020TFFJ, PDD23F0020TFFK, PDD23F0020TFFL, PDD23F0020TFFN, PDD23F0020VFFJ, PDD23F0020VFFK, PDD23F0020VFFL
Eaton PDD23F0015TFFJ, PDD23F0015TFFK, PDD23F0015TFFL, PDD23F0015TFFN, PDD23F0015VFFJ, PDD23F0015VFFK, PDD23F0015VFFL, PDD23F0015VFFN, PDD23F0020TFFJ, PDD23F0020TFFK, PDD23F0020TFFL, PDD23F0020TFFN, PDD23F0020VFFJ, PDD23F0020VFFK, PDD23F0020VFFL
Eaton PDD23F0015TFFJ, PDD23F0015TFFK, PDD23F0015TFFL, PDD23F0015TFFN, PDD23F0015VFFJ, PDD23F0015VFFK, PDD23F0015VFFL, PDD23F0015VFFN, PDD23F0020TFFJ, PDD23F0020TFFK, PDD23F0020TFFL, PDD23F0020TFFN, PDD23F0020VFFJ, PDD23F0020VFFK, PDD23F0020VFFL
Eaton PDD23F0015TFFJ, PDD23F0015TFFK, PDD23F0015TFFL, PDD23F0015TFFN, PDD23F0015VFFJ, PDD23F0015VFFK, PDD23F0015VFFL, PDD23F0015VFFN, PDD23F0020TFFJ, PDD23F0020TFFK, PDD23F0020TFFL, PDD23F0020TFFN, PDD23F0020VFFJ, PDD23F0020VFFK, PDD23F0020VFFL
$542.35
Unit
Available on backorder
remove
add

Product Details

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 2, Three Pole, 20A, 25kA/480V, T-M (Fxd-Fxd) TU, Standard Line and Load (PDG2X3T100)

Attributes

Amperage Rating 20 A
Circuit Breaker Frame Type Complete breaker
Circuit Breaker Type PD2 Global
Class Class A
Frame 2
Interrupt Rating 25 kAIC at 480 Vac
Interrupt Rating Range 10 kAIC Icu @125 Vdc 35 kAIC Icu/ 35 kAIC Ics/ 73.5 kAIC Icm @240V (IEC) 25 kAIC Icu/ 25 kAIC Ics/ 52.5 kAIC Icm @380-415V (IEC) 10 kAIC Icu @250 Vdc 25 kAIC @480V (UL) 14 kAIC @600V (UL/CSA) 18 kAIC Icu/ 15/13 kAIC Ics/ 37.8 kAIC Icm @525V South Africa (IEC) 20 kAIC Icu/ 20 kAIC Ics/ 42 kAIC Icm @480V Brazil (IEC) 35 kAIC @240V (UL) 25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @440V (IEC)
Number Of Poles Three-pole
Rated Operation Voltage Ue At Ac Max 600.0000
Switch Off Technique Thermomagnetic
Terminals Standard Line and Load
Trip Type T-M (Fxd-Fxd) TU
Voltage Rating 600 Vac
Voltage Rating Max 600 VLT
Voltage Rating Max Uom VLT
Voltage Rating Uom VLT

Specifications

SKUCS4932100
MPNPDG23F0020TFFJ
Alternate Part #81D6502F02
UPC/EAN786679282489
