Eaton M22M-DL-R-K10-230R

SKU: CS4899772MPN: M22M-DL-R-K10-230RAlternate Part #: 3-5505-058AUPC/EAN: 786685861494

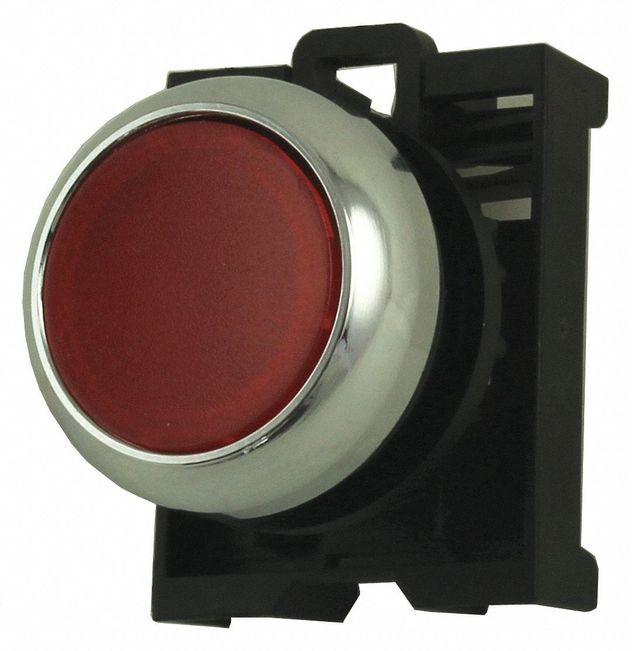

Eaton M22 modular pushbutton

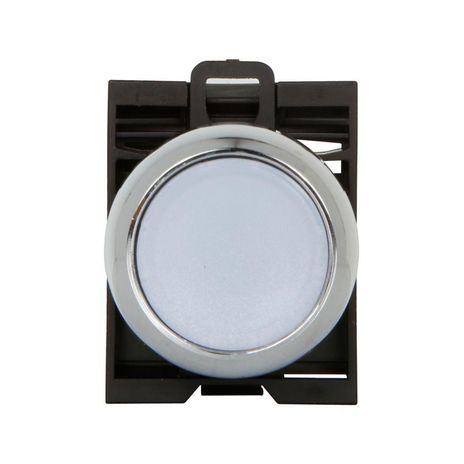

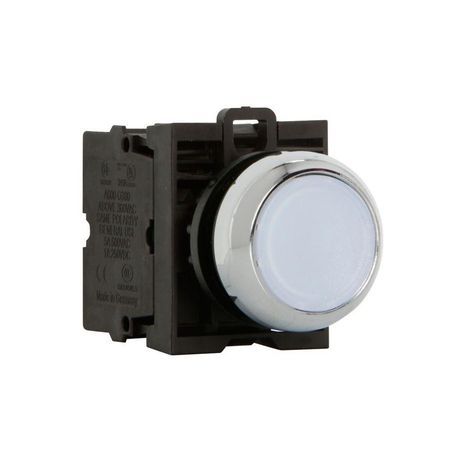

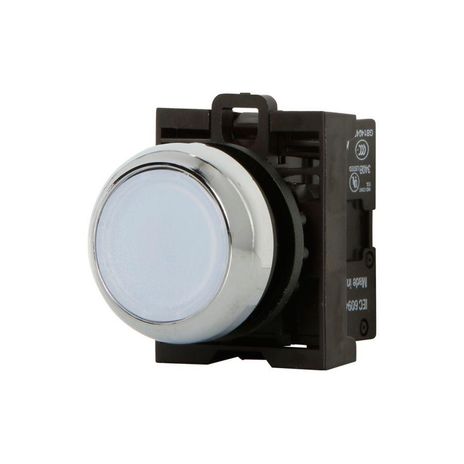

Eaton M22M-DL-R-K01-230R, M22M-DL-R-K01-R, M22M-DL-R-K10-230R, M22M-DL-R-K10-R, M22M-DL-W-K10-230W
Eaton M22M-DL-R-K01-230R, M22M-DL-R-K01-R, M22M-DL-R-K10-230R, M22M-DL-R-K10-R, M22M-DL-W-K10-230W
Eaton M22M-DL-R-K01-230R, M22M-DL-R-K01-R, M22M-DL-R-K10-230R, M22M-DL-R-K10-R, M22M-DL-W-K10-230W
Eaton M22M-DL-R-K01-230R, M22M-DL-R-K01-R, M22M-DL-R-K10-230R, M22M-DL-R-K10-R, M22M-DL-W-K10-230W
Eaton M22M-DL-R-K01-230R, M22M-DL-R-K01-R, M22M-DL-R-K10-230R, M22M-DL-R-K10-R, M22M-DL-W-K10-230W
Contact us for pricing and availability

Product Details

Eaton M22 modular pushbutton, 22.5 mm, Illuminated, Metal, flush momentary, Red, 1NO, Red, 85-264 Vac/dc, NEMA 4x, 13, IP67, IP69K (IP66 key-release)

Attributes

Actuator Flush
Actuator Function Momentary
Application Pushbutton
Bezel Metal
Button Color Red
Contact Configuration 1 NO
Enclosure NEMA 13 NEMA 4X
Environmental Rating IP67, IP69K (IP66 key-release)
Illumination Illuminated
Light Color Red
Light Unit Voltage 85-264 Vac/dc
Operating Mode Flush momentary
Series M22
Size 22.5 mm
Special Features M22 series
Type 22.5 mm RMQ-Titan Modular

Specifications

SKUCS4899772
MPNM22M-DL-R-K10-230R
Alternate Part #3-5505-058A
UPC/EAN786685861494
