All ProductsEaton

Eaton M22-DL-R-K01-R

SKU: CS4898814MPN: M22-DL-R-K01-RAlternate Part #: 3-5478-006AUPC/EAN: 786685274775

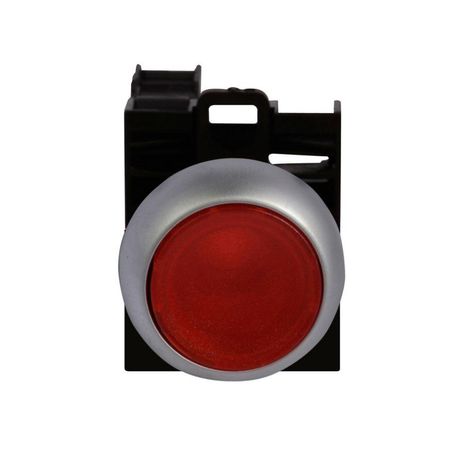

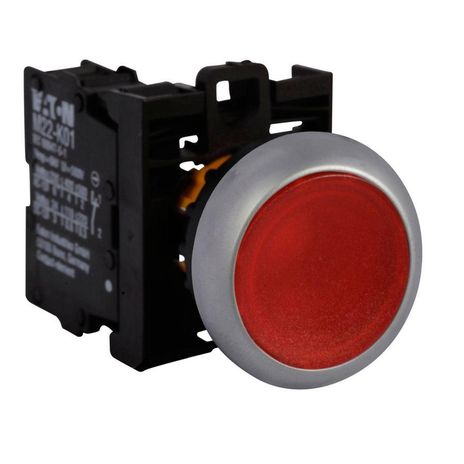

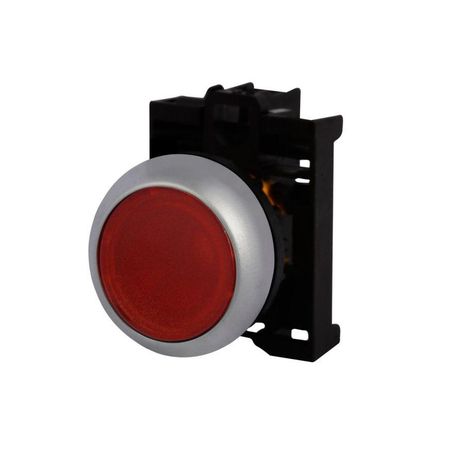

Eaton M22 modular pushbutton

Eaton M22-DL-R-K01-230R, M22-DL-R-K01-R, M22-DL-R-K02-230R, M22-DL-R-K02-R, M22-DL-R-K10-R, M22-DL-R-K11-230R, M22-DL-R-K11-R
Eaton M22-DL-R-K01-230R, M22-DL-R-K01-R, M22-DL-R-K02-230R, M22-DL-R-K02-R, M22-DL-R-K10-R, M22-DL-R-K11-230R, M22-DL-R-K11-R
Eaton M22-DL-R-K01-230R, M22-DL-R-K01-R, M22-DL-R-K02-230R, M22-DL-R-K02-R, M22-DL-R-K10-R, M22-DL-R-K11-230R, M22-DL-R-K11-R
Eaton M22-DL-R-K01-230R, M22-DL-R-K01-R, M22-DL-R-K02-230R, M22-DL-R-K02-R, M22-DL-R-K10-R, M22-DL-R-K11-230R, M22-DL-R-K11-R
Eaton M22-DL-R-K01-230R, M22-DL-R-K01-R, M22-DL-R-K02-230R, M22-DL-R-K02-R, M22-DL-R-K10-R, M22-DL-R-K11-230R, M22-DL-R-K11-R
Contact us for pricing and availability

Product Details

Eaton M22 modular pushbutton, Complete Device, 22.5 mm, Flush, Momentary, Illuminated, Bezel: Silver, Button: Red, 1NC, IP67, IP69K, NEMA 4X, 13, 12-30 Vac/dc

Attributes

Actuator Button, flush
Actuator Function Momentary
Application Pushbutton
Bezel Silver
Button Color Red
Contact Configuration 1 NC
Environmental Rating IP67, IP69K, NEMA 4X, NEMA 13
Illumination Illuminated
Series M22
Size 22.5 mm
Special Features M22 series
Type 22.5 mm Modular
Voltage Rating 12-30 Vac/dc
Voltage Rating Uom VLT

Specifications

SKUCS4898814
MPNM22-DL-R-K01-R
Alternate Part #3-5478-006A
UPC/EAN786685274775
