Eaton LSR-S02-1-I-TS

Name: Eaton LSR-S02-1-I-TS
Brand: Eaton
SKU: CS4896327
Price: 299.06 USD
Availability: OutOfStock

SKU: CS4896327MPN: LSR-S02-1-I-TSUPC/EAN: 786685393872

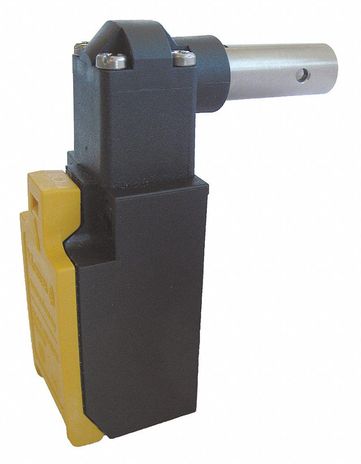

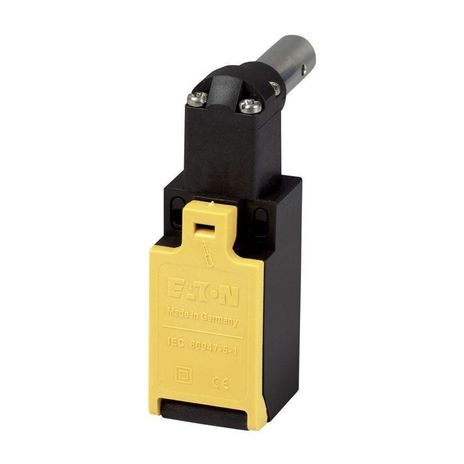

Eaton LS-Titan Key interlock safety switches

Product Details

Eaton LS-Titan Safety Interlock Switch, Cabinet Door Hinge Switch, Polyamide PA66-GF25 enclosures, 6A max AC, 3A max DC, 2NC, Slow Make Break, Positive Opening, 6A at 230Vac, 0.5A at 250Vdc, Screw Terminals

Attributes

Connection	Screw terminal
Contact Configuration	2 NC, slow make break, positive opening
Contact Rating	6A at 230Vac, 0.5A at 250Vdc
Enclosure Material	Polyamide PA66-GF25
Environmental Rating	IP66, IP67
Maximum Ac Current	6 A
Maximum Dc Current	3 A
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Switch Type	Cabinet door hinge switch
Type	LS-Titan
