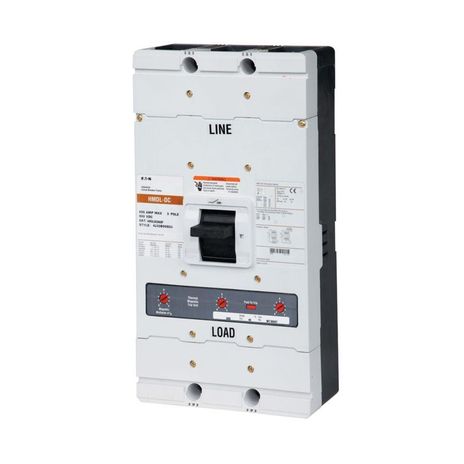

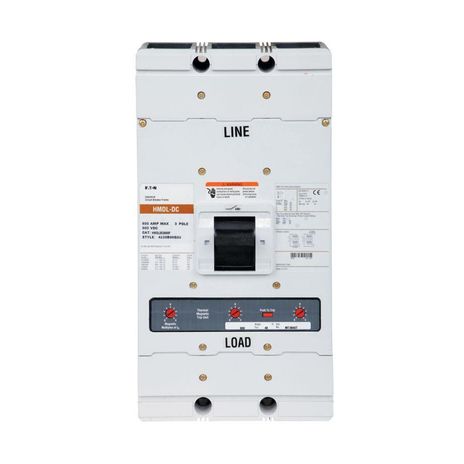

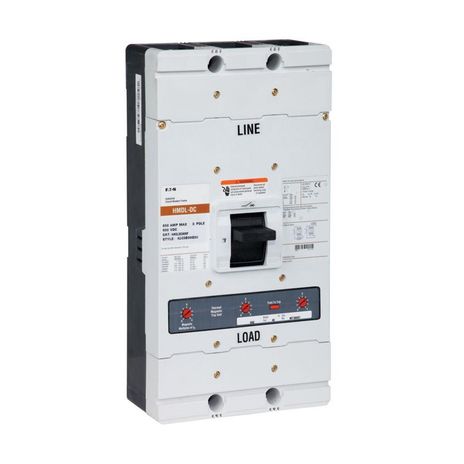

Eaton HMDLDC3700WA13S86Z02
SKU: CS4883171MPN: HMDLDC3700WA13S86Z02Alternate Part #: 4203B99G31UPC/EAN: 786685581316
Eaton PV Guard / Solar complete molded case circuit breaker
Contact us for pricing and availability
Product Details
Eaton Series C DC/PvGard complete molded case circuit breaker, MDL-frame, HMDL, Interchangeable thermal-magnetic trip, Three-pole, 700A, 690 Vac, 250 Vdc, 35 kAIC at 600 Vac, 2A-2B rear w/right pigtail, 48-60 Vdc rear w/ left pigtail
Attributes
| Amperage Rating | 700 A |
| Auxiliary Switch | 2A-2B rear with right pigtail |
| Circuit Breaker Frame Type | Complete breaker |
| Circuit Breaker Type | HMDL |
| Class | Vdc |
| Frame | MDL |
| Interrupt Rating | 35 kAIC at 600 Vdc 42 kAIC at 125 Vdc |
| Number Of Poles | Three-pole |
| Shunt Trip | 48-60 Vdc left pigtail rear |
| Terminals | Without terminals, optional line and load |
| Trip Type | Interchangeable thermal-magnetic |
| Voltage Rating | 600 Vdc |
| Voltage Rating Uom | AMP |
Specifications
| SKU | CS4883171 |
|---|---|
| MPN | HMDLDC3700WA13S86Z02 |
| Alternate Part # | 4203B99G31 |
| UPC/EAN | 786685581316 |
