Eaton E67-LRDP200-KLD
SKU: CS4873841MPN: E67-LRDP200-KLDUPC/EAN: 782114838990
Eaton E67 long-range PerfectProx background suppression photoelectric sensor
$1,091.78
UnitAvailable on backorder
Product Details
Eaton Long Range Perfect Prox Photoelectric Sensor, E67, Back Ground Suppression, Right Angle, Light, Output ON (red), power applied to sensor (green), Dual key micro, 75 mA AC/DC at 20-132 Vac/dc, 4 pin, 20-132 Vac, 20-132 Vdc
Attributes
| Connection | 4-pin M12 connector |
| Contact Configuration | NPN and PNP open collector |
| Contact Rating | 100 mA at 30Vdc |
| Enclosure Material | Back cover: Cycoloy polycarbonate/ABS Enclosure: Lexan polycarbonate |
| Environmental Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13 |
| Input Voltage | 18-30 Vdc |
| Led Indicator | Power on: green Output on: red |
| Maximum Ac Current | 75 mA |
| Maximum Dc Current | 100 mA |
| Number Of Pins | 4.0000 |
| Operating Mode | Background suppression |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -31 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Protected for short circuit but not overload |
| Sensor Type | Back ground suppression |
| Series | E67 |
| Switch Type | Photoelectric |
Specifications
| SKU | CS4873841 |
|---|---|
| MPN | E67-LRDP200-KLD |
| UPC/EAN | 782114838990 |
You may also like

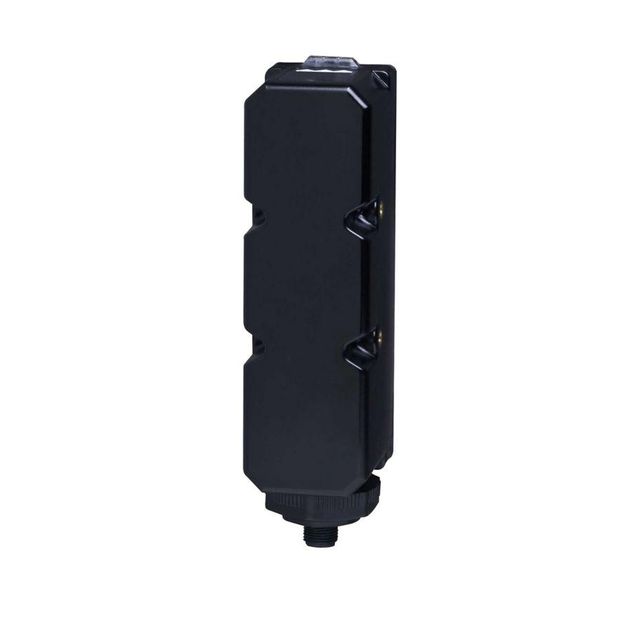

Eaton E67-LRDP200-HLD
