Eaton E59-M18C116D01-D1NN

Name: Eaton E59-M18C116D01-D1NN
Brand: Eaton
SKU: CS4873660
Price: 351.35 USD
Availability: OutOfStock

SKU: CS4873660MPN: E59-M18C116D01-D1NNAlternate Part #: 41-3191-85UPC/EAN: 782116681105

Eaton E59 iProx programmable inductive proximity sensor

Eaton E59-30LE22-BD, E59-M12A105A01-A2, E59-M12A105A01P-A1, E59-M12A105A01P-A2, E59-M12A105A01PB-A1, E59-M12A105A01PB-A2, E59-M12A105C02-A1, E59-M12A105C02-A2, E59-M12A105C02-D1NN, E59-M12A105C02-D1PP, E59-M12A105C02-D1S4, E59-M12A105C02-D2, E59-M12A105C02-D3NN, E59-M12A105C02-D3PP, E59-M12A105D01-D1NN

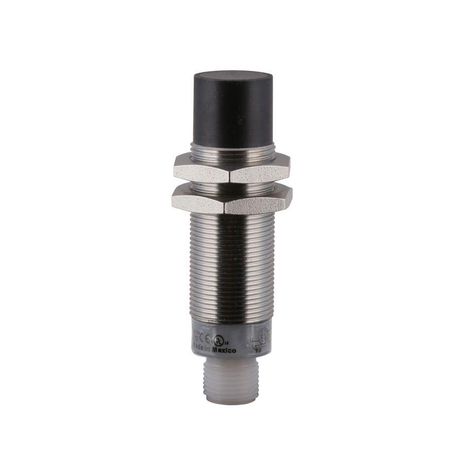

Eaton E59-M18C116D01-D1NN, E59-M18C116D01-D1PP

Product Details

Eaton Iprox Series Tubular Inductive Proximity Sensor Enclosure, 0.71 dia, Sensor dist 16 mm, Dual NPN Open Collector, NO, 500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc, 4 Pin M12 Connector, 6-48 Vdc input, \<3% of sensing dist. accuracy

Attributes

Accuracy	< 3% of sensing distance
Actuator Function	Unshielded
Connection	4-pin M12 connector
Contact Configuration	Dual NPN open collector, NO
Contact Rating	500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc
Enclosure Material	End bell: polycarbonate Front cap: polyphenylene sulfide Tube: stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	6-48 Vdc
Led Indicator	Green power up turns red when output energized
Maximum Dc Current	500 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset short circuit
Sensor Type	Inductive proximity
Series	E59
