Eaton E59-M18C116C02-D3PP

Name: Eaton E59-M18C116C02-D3PP
Brand: Eaton
SKU: CS4873659
Price: 267.50 USD
Availability: OutOfStock

SKU: CS4873659MPN: E59-M18C116C02-D3PPAlternate Part #: 41-3191-156UPC/EAN: 786685105444

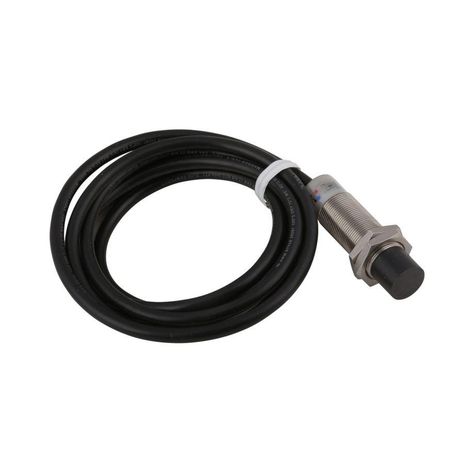

Eaton E59 iProx programmable inductive proximity sensor

Eaton E59-30LE22-BD, E59-M12A105A01-A2, E59-M12A105A01P-A1, E59-M12A105A01P-A2, E59-M12A105A01PB-A1, E59-M12A105A01PB-A2, E59-M12A105C02-A1, E59-M12A105C02-A2, E59-M12A105C02-D1NN, E59-M12A105C02-D1PP, E59-M12A105C02-D1S4, E59-M12A105C02-D2, E59-M12A105C02-D3NN, E59-M12A105C02-D3PP, E59-M12A105D01-D1NN

Eaton E59-M18C116C02-D3NN, E59-M18C116C02-D3PP

Product Details

Eaton Inductive Proximity Sensor, E59, Straight, Unshielded, 360° viewable LED, 6.6 ft, 300 mA at 6-48 Vdc, \<3% sensing range, PVC, 1NO-1NC complementary output, 6-48 Vdc

Attributes

Accuracy	< 3% sensing range
Actuator Function	Unshielded
Cable Type	Polyvinyl Chloride (PVC)
Contact Configuration	1 NO-1 NC complementary output
Contact Rating	300 mA at 6-48 Vdc
Enclosure Material	303 stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	6-48 Vdc
Led Indicator	360 ° viewable LED
Maximum Dc Current	300 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset
Series	E59
Temperature Rating	-40 to 158 °F
Type	E59
