Eaton E59-M12A105A01P-A1

Name: Eaton E59-M12A105A01P-A1
Brand: Eaton
SKU: CS4873594
Price: 328.19 USD
Availability: OutOfStock

SKU: CS4873594MPN: E59-M12A105A01P-A1Alternate Part #: 41-3190-60UPC/EAN: 782116183067

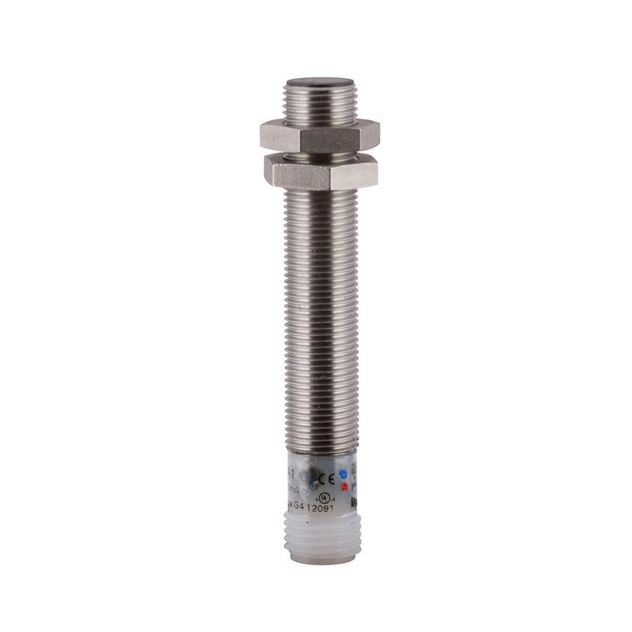

Eaton E59 iProx programmable inductive proximity sensor

Eaton E59-30LE22-BD, E59-M12A105A01-A2, E59-M12A105A01P-A1, E59-M12A105A01P-A2, E59-M12A105A01PB-A1, E59-M12A105A01PB-A2, E59-M12A105C02-A1, E59-M12A105C02-A2, E59-M12A105C02-D1NN, E59-M12A105C02-D1PP, E59-M12A105C02-D1S4, E59-M12A105C02-D2, E59-M12A105C02-D3NN, E59-M12A105C02-D3PP, E59-M12A105D01-D1NN

Product Details

Eaton E59 iProx programmable inductive proximity sensor, Tubular Inductive Proximity Sensor Enclosure, 0.47 dia, Sensor dist 4 mm, 300 mA max AC, 2 Wire AC, NO, 300 mA at 132 Vac, 3 Pin Pigtail Dual Key Micro Connector, 20-132 Vac input

Attributes

Accuracy	< 1% of sensing distance
Actuator Function	Shielded
Connection	3-pin pigtail dual key micro connector
Contact Configuration	2-wire AC, NO
Contact Rating	300 mA at 132 Vac
Enclosure Material	Front cap: polyphenylene sulfide Tube: stainless steel End bell: polycarbonate
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	20-132 Vac
Led Indicator	Green power up turns red when output energized
Maximum Ac Current	300 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Inductive proximity
