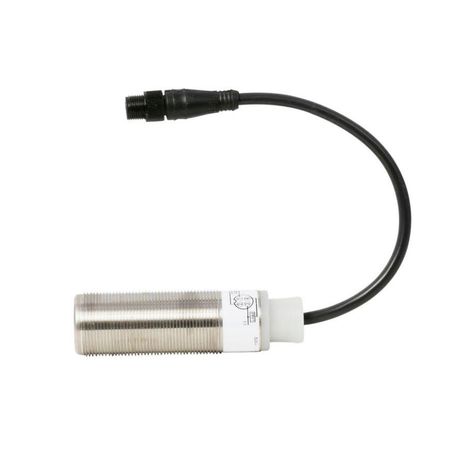

Eaton E58-30RP10-GD

SKU: CS4873476MPN: E58-30RP10-GDUPC/EAN: 782114091463

Eaton harsh-duty sensor

Eaton E58-30RP10-GD, E58-30RP10-GDP, E58-30RP10-GL, E58-30RP10-GLP, E58-30RP10-HLP
Contact us for pricing and availability

Product Details

Eaton harsh-duty sensor, E58 Tubular 30mm Photoelectric Sensor, 1.18 dia, dist. 33 Ft., AC: L1 Switched, DC: NPN Open Collector, 300 mA DC NPN/AC 3-Wire, 6.6 Ft. (2m) Cable, 20-132 Vac 50/60 Hz or 15-30 Vdc input, Latching short circuit

Attributes

Cable Type Polyvinyl Chloride (PVC)
Connection 6.6 ft (2 m) cable
Contact Configuration AC: L1 switched DC: NPN open collector
Contact Rating 300 mA DC NPN / 300 mA AC 3 - Wire
Enclosure Material Stainless steel
Environmental Rating NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP69K
Input Voltage 20-132 Vac at 50/60 Hz, 15-30 Vdc
Led Indicator Output status: red
Maximum Ac Current 300 mA
Maximum Dc Current 300 mA
Operating Mode Polarized retroreflective
Operating Temperature Max 131 FAH
Operating Temperature Max Uom FAH
Operating Temperature Min -40 FAH
Operating Temperature Min Uom FAH
Protection Latching short circuit
Sensor Type Polarized retroreflective
Switch Type Photoelectric

Specifications

SKUCS4873476
MPNE58-30RP10-GD
UPC/EAN782114091463
