Eaton E57-18GS05-D5

Name: Eaton E57-18GS05-D5
Brand: Eaton
SKU: CS4872706
Price: 177.88 USD
Availability: OutOfStock

SKU: CS4872706MPN: E57-18GS05-D5UPC/EAN: 782114856079

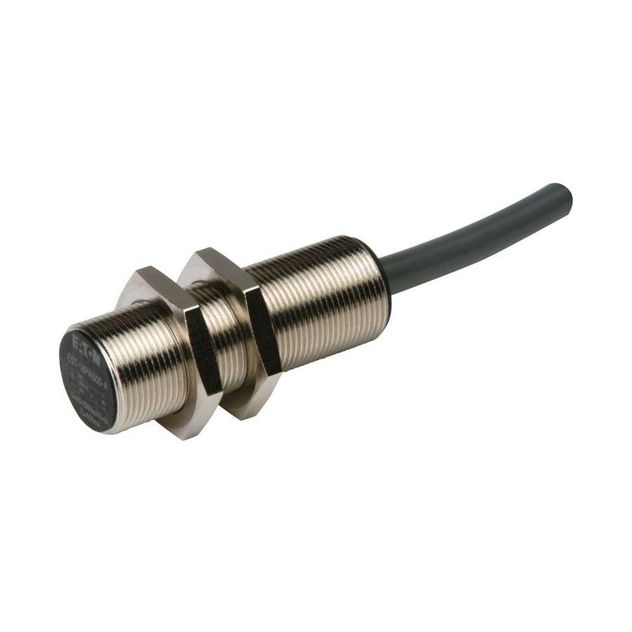

Eaton E57 inductive proximity sensor

Eaton E57-18GS05-D, E57-18GS05-D1, E57-18GS05-D15, E57-18GS05-D1DB, E57-18GS05-D1S5, E57-18GS05-D1S7, E57-18GS05-D3, E57-18GS05-D5

Product Details

Eaton Tubular Inductive Proximity Sensor, E57, 5 mm range, Straight, 18 mm, Shielded, Output ON, 16.4 ft, 100 mA at 10-30 Vdc, \<2.0% sensing range, PVC, Nickel plated brass nonmetallic, 2-wire DC, NO, 10-30 Vdc

Attributes

Accuracy	< 2.0% sensing range
Actuator Function	Shielded
Cable Type	Polyvinyl Chloride (PVC)
Contact Configuration	2-wire DC, NO
Contact Rating	100 mA at 10-30 Vdc
Enclosure Material	Nickel plated brass
Environmental Rating	IP67, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output ON
Material	Nickel plated brass nonmetallic
Maximum Dc Current	100 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit
Series	E57
Size	18
Temperature Rating	-13 to 158 °F
Type	E57
