Eaton E57-12LE10-C1D

Name: Eaton E57-12LE10-C1D
Brand: Eaton
SKU: CS4872690
Price: 226.56 USD
Availability: OutOfStock

SKU: CS4872690MPN: E57-12LE10-C1DUPC/EAN: 782113934891

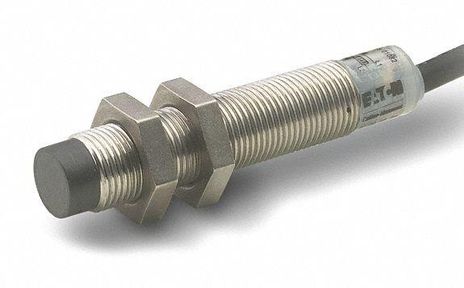

Eaton E57 inductive proximity sensor

Eaton E57-12LE06-A, E57-12LE06-A1, E57-12LE06-A1A, E57-12LE06-AA, E57-12LE06-B, E57-12LE06-B1, E57-12LE06-BD, E57-12LE06-C, E57-12LE06-C1, E57-12LE06-C1D, E57-12LE06-CD, E57-12LE10-A, E57-12LE10-A1, E57-12LE10-A1A, E57-12LE10-B1

Eaton E57-12LE10-A, E57-12LE10-A1, E57-12LE10-A1A, E57-12LE10-AA, E57-12LE10-B, E57-12LE10-B1, E57-12LE10-B1D, E57-12LE10-BD, E57-12LE10-C, E57-12LE10-C1, E57-12LE10-C1D

Product Details

E57 Premium+ Series Tubular Inductive Proximity Sensor Enclosure, 0.47 dia, dist. 10 mm, NPN, NC, 500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc, 4 Pin M12 Connector, 6-48 Vdc input, Auto reset short circuit, Non-embeddable

Attributes

Accuracy	< 3% of sensing distance
Actuator Function	Non-embeddable
Connection	4-pin M12 connector
Contact Configuration	NPN, NC
Contact Rating	500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc
Enclosure Material	Front cap: polyphenylene sulfide End bell: polycarbonate Tube: stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	6-48 Vdc
Led Indicator	Green power up turns red when output energized
Maximum Dc Current	500 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset short circuit
Sensor Type	Inductive proximity
Series	E57
